(90.110.040) - VAR - 423000 - CANOPY, FRONT, CONSOLE

Запчасти Case 580SN WT (90.110.040) - VAR - 423000 - CANOPY, FRONT, CONSOLE (90) - PLATFORM, CAB, BODYWORK AND DECALS

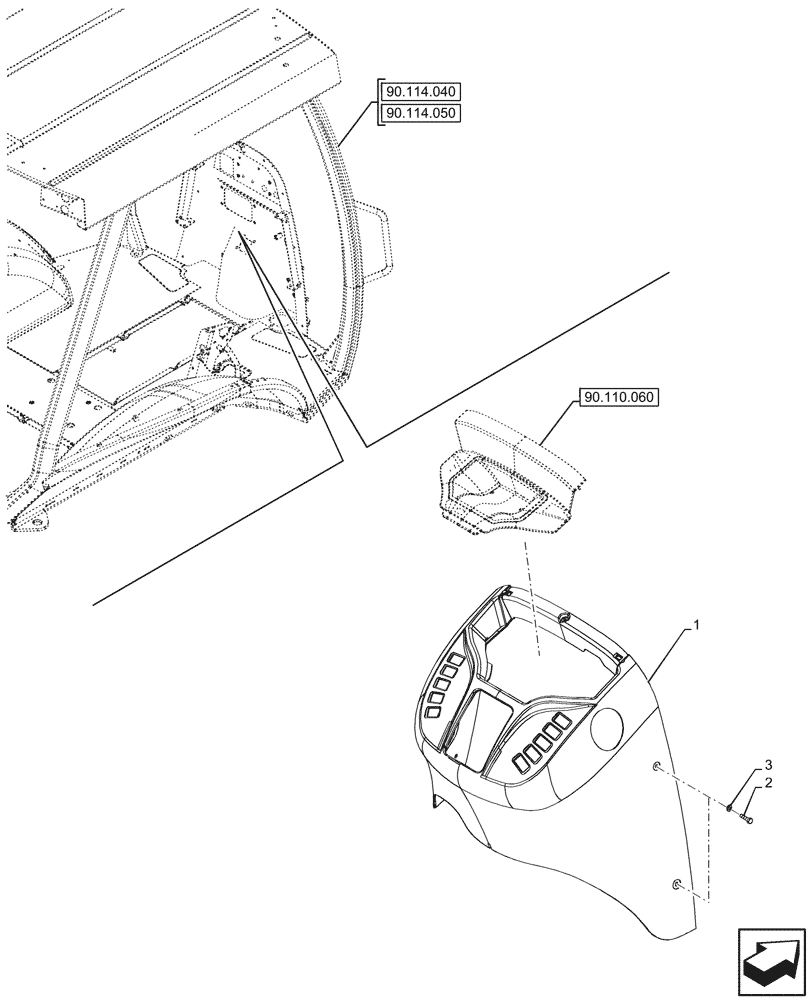

Схема запчастей Case 580SN WT - (90.110.040) - VAR - 423000 - CANOPY, FRONT, CONSOLE (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.110.060
1
3
2
90.114.050
90.114.040
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47954940

CONSOLE

Front

1шт.

2

87310152

BOLT,M6 x 16 Full SST BLO

4шт.

3

87423817

WASHER,11mm ID x 40mm OD x 2mm Thk

4шт.

Выбрано товаров: 3
