(10.202.060) - AIR CLEANER, ENGINE, INTAKE AIR HOSE

Запчасти Case 580SN WT (10.202.060) - AIR CLEANER, ENGINE, INTAKE AIR HOSE (10) - ENGINE

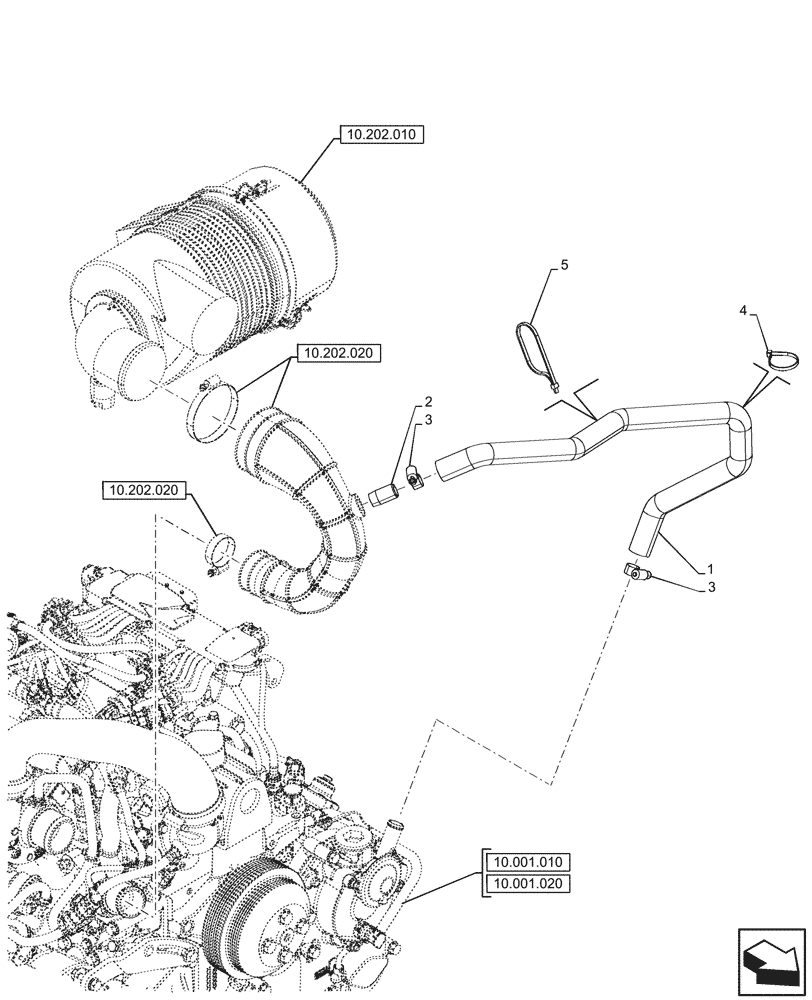

Схема запчастей Case 580SN WT - (10.202.060) - AIR CLEANER, ENGINE, INTAKE AIR HOSE (10) - ENGINE
10.202.020
4
3
3
5
2
1
10.202.010
10.001.010
10.001.020
10.202.020
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47691878

INTAKE AIR HOSE

Air Cleaner to Engine

1шт.

2

47691875

NIPPLE,1/2" - 14 NPT, 21.3mm OD, 38mm L

1шт.

3

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

2шт.

4

L11541

CABLE TIE,203.2mm L, Nylon

1шт.

5

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.

Выбрано товаров: 5
