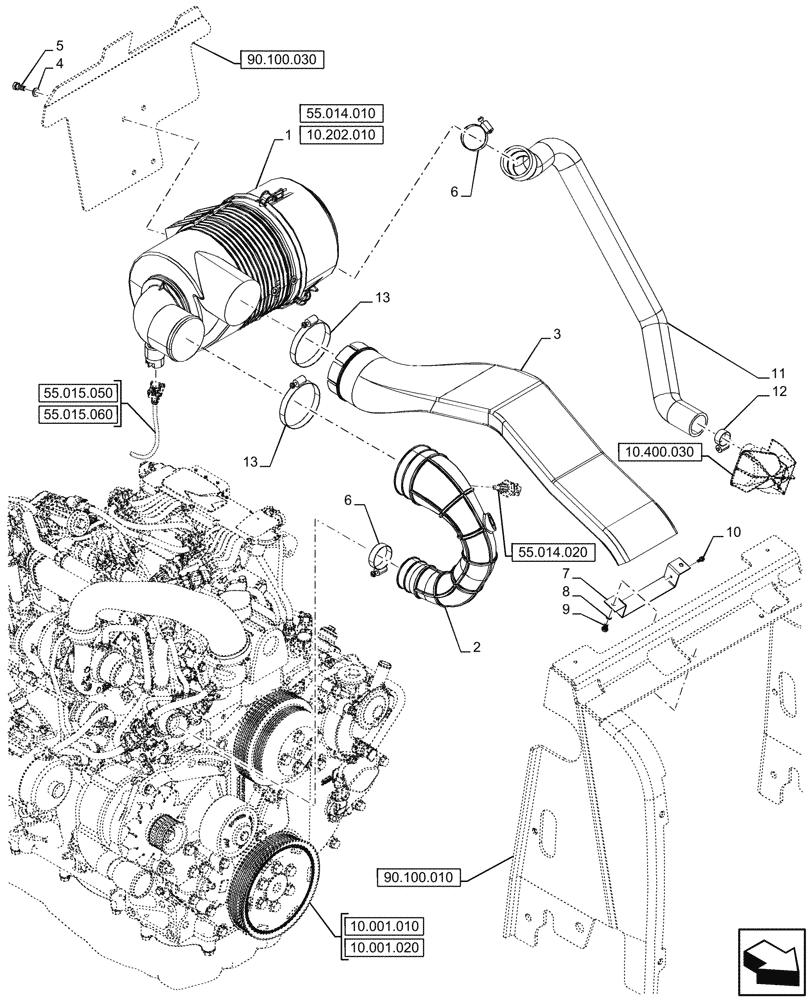

Запчасти Case 580SN WT (10.202.010) - AIR CLEANER (10) - ENGINE

1

84375347

AIR CLEANER

ASSY

1шт.

2

47700469

INTAKE AIR HOSE

Air Cleaner to Turbocharger

1шт.

3

84280287

AIR DUCT

Intake

1шт.

4

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

5

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

6

214-1436

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

7

84558073

BRACKET

1шт.

8

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

9

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

2шт.

10

282-16512

SCREW,Hex Wshr Hd, #10 - 16 x 3/4"

1шт.

11

47878590

HOSE

1шт.

12

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

1шт.

13

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

2шт.
