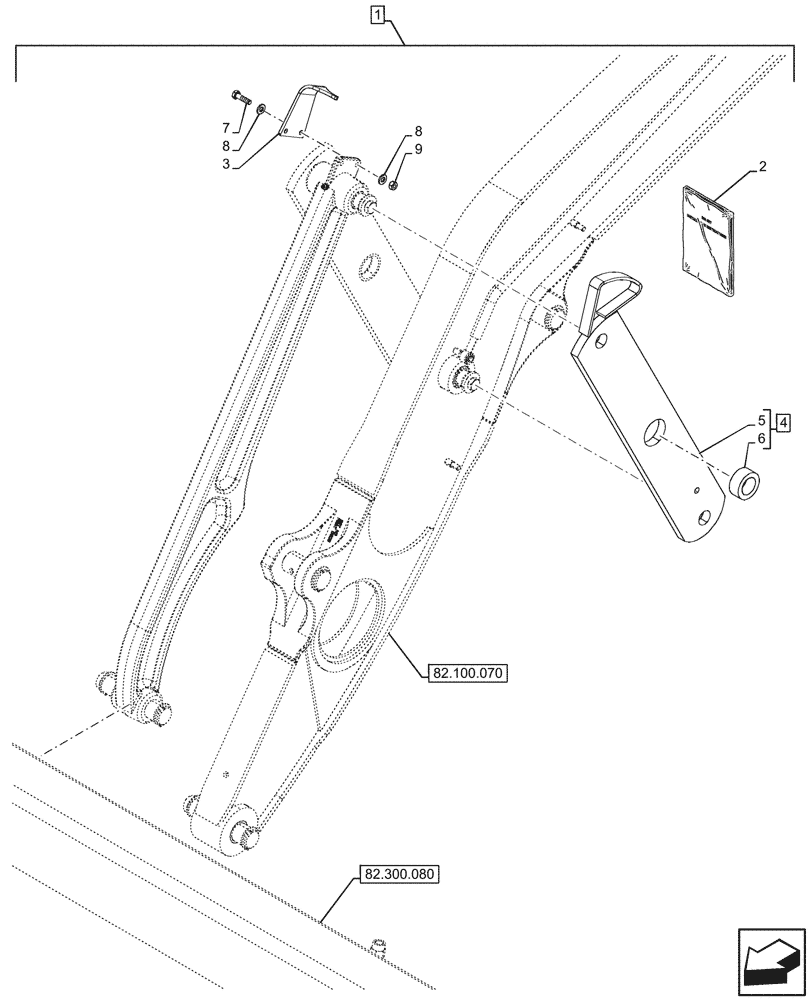

Запчасти Case 580SN WT (88.100.82[03]) - DIA KIT, 4-IN-1 BUCKET, 93INCH/2362MM (88) - ACCESSORIES

1

47553020

CONSTRUCTION DIA

4 in 1 93 INCH, Incl 2 - 9

1шт.

Refer to Installation Instructions P/N for Correct Assembly Procedure

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47540575

INSTRUCTION

1шт.

3

250851A1

POINTER

4 in 1 Loader Bucket Power TAN

1шт.

4

84301392

LINK BLOCK

ASSY, RH Inner 4 in 1 Power TAN, Incl 5, 6

1шт.

5

NSS

NOT SOLD SEPARAT

Link, Incl in 4

1шт.

6

47865950

BUSHING,50.26mm ID x 59.98mm OD x 25.4mm L

1шт.

7

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

8

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

4шт.

9

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.
