(84.912.110) - STANDARD DIPPER, W/ HYDRAULIC COUPLER

Запчасти Case 580SN WT (84.912.110) - STANDARD DIPPER, W/ HYDRAULIC COUPLER (84) - BOOMS, DIPPERS & BUCKETS

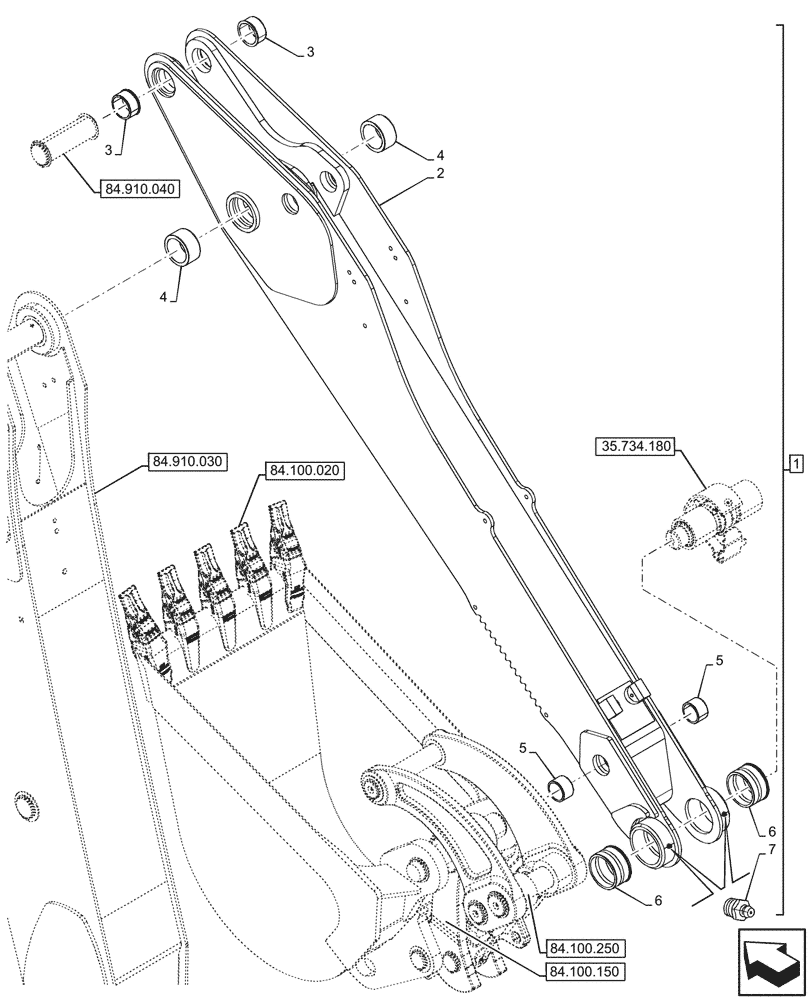

Схема запчастей Case 580SN WT - (84.912.110) - STANDARD DIPPER, W/ HYDRAULIC COUPLER (84) - BOOMS, DIPPERS & BUCKETS
84.100.150
3
6
5
4
1
3
7
2
4
6
5
84.100.020
84.910.030
35.734.180
84.910.040
84.100.250
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84478890

DIPPER

ASSY, Power Tan, Incl 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

STD Dipper, Incl in 1

1шт.

3

84223633

BUSHING,60.19mm ID x 69.98mm OD x 34mm L

2шт.

4

D137218

BUSHING,70.19mm ID x 90mm OD x 44mm L

2шт.

5

84170645

BUSHING,50.19mm ID x 60mm OD x 36mm L

2шт.

6

400934A2

BUSHING,89.13mm ID x 105mm OD x 54mm L

2шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

Выбрано товаров: 7
