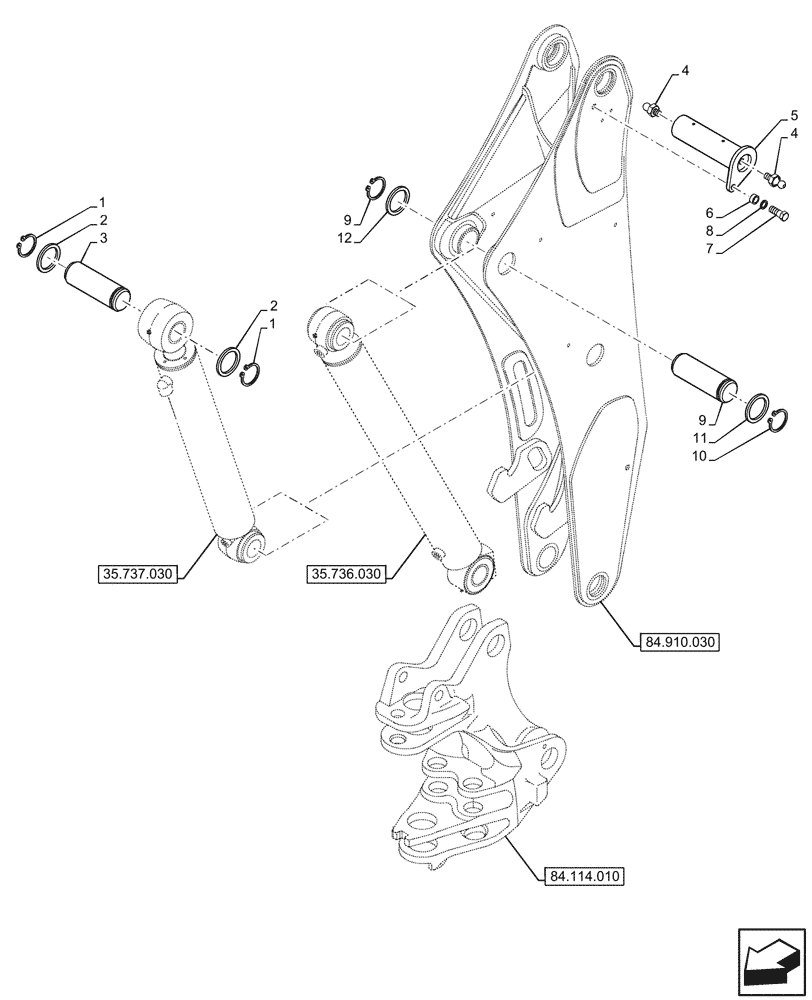

Запчасти Case 580SN WT (84.910.040) - BOOM, PIN (84) - BOOMS, DIPPERS & BUCKETS

1

84224886

RING,60mm ID, Ext

2шт.

2

84224845

SHIM,62mm ID x 75mm OD x 1.5mm Thk

2шт.

3

84217317

PIN,59.9mm OD x 192.1mm L

1шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

5

84520512

PIN,70mm OD x 330mm L

1шт.

6

604-20040

BOLT,Hex, M20 x 40mm, Cl 8.8

1шт.

7

122897A1

SPACER,21mm ID x 31.75mm OD x 12mm L

1шт.

8

87655047

SPECIAL WASHER,21.25mm ID x 38.10mm OD x 4.20mm Thk

1шт.

9

800-40070

SNAP RING,M70 Ext

4шт.

10

84230833

PIN,70mm OD x 310.1mm L

2шт.

11

D136392

SHIM,72mm ID x 89mm OD x 3.05mm Thk

2шт.

12

D136391

SHIM,72mm ID x 89mm OD x 1.57mm Thk

2шт.
