(82.300.030) - VAR - 423004 - BUCKET, 96INCH/2438MM LONG LIP

Запчасти Case 580SN WT (82.300.030) - VAR - 423004 - BUCKET, 96INCH/2438MM LONG LIP (82) - FRONT LOADER & BUCKET

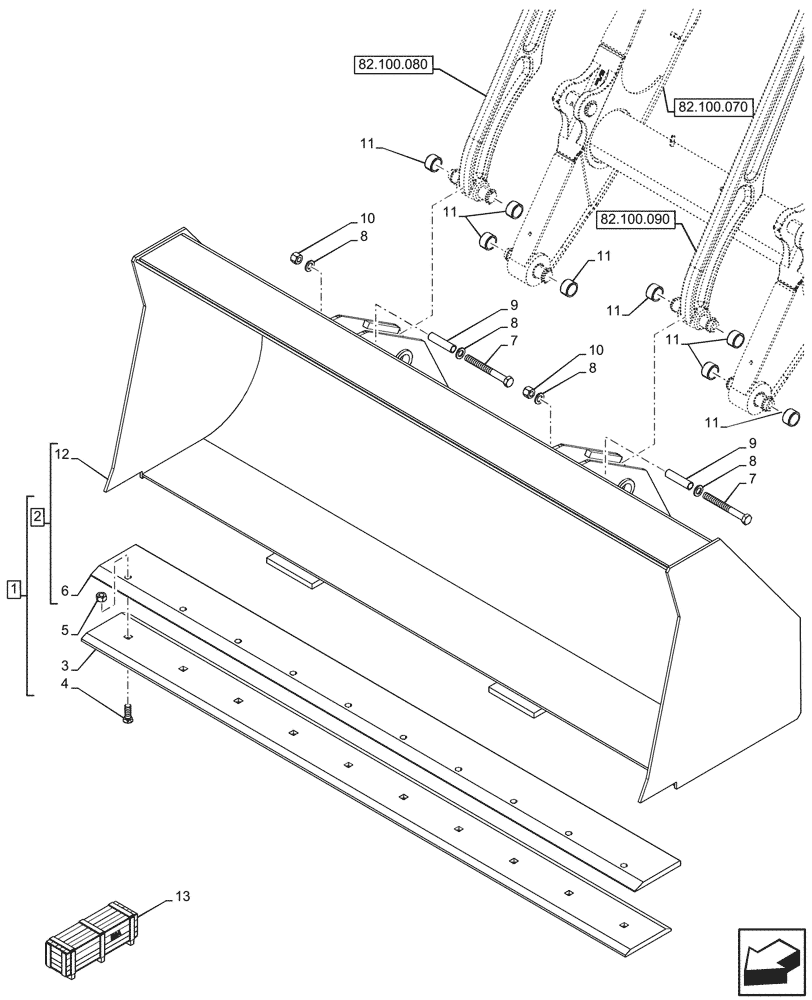

Схема запчастей Case 580SN WT - (82.300.030) - VAR - 423004 - BUCKET, 96INCH/2438MM LONG LIP (82) - FRONT LOADER & BUCKET
82.100.090
9
11
13
4
11
8
10
9
8
11
11
12
10
7
2
5
7
1
11
6
3
8
11
8
82.100.080
82.100.070
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84479230

BUCKET,96 Inch LLGP

ASSY, Grey, 1.5YD 96Inch/2438mm LL, Incl 2 - 12

1шт.

2

84189277

BUCKET,2438mm L

ASSY, W/ Blade Mounting, Incl 6, 11, 12

1шт.

3

87375241

EDGE,96 Inch / 2438mm, 10 Holes

1шт.

4

420-21236

CARRIAGE BOLT,#3, 3/4" - 10 x 2 1/4", Gr 8

10шт.

5

429-1012

NUT,3/4"-10, G8

10шт.

6

332448A1

PLATE

1шт.

7

84334022

BOLT,Hex, M20 x 2.5 x 180mm, Cl 10.9

2шт.

8

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

9

84235628

SPACER,21mm ID x 25mm OD x 100mm L

2шт.

10

832-10420

NUT,M20 x 2.5, Cl 8

2шт.

11

D129264

BUSHING,40.3mm ID x 50mm OD x 28mm L

2шт.

12

NSS

NOT SOLD SEPARAT

Bucket, Incl in 2

1шт.

13

84482613

BUCKET

Bucket 96 Inch Long Lip General Pourpose, Incl 1 - 12

1шт.

Valid for 580SN WT (Livery), 590SN (Livery) Models only

1шт.
