(82.100.070) - FRONT LOADER, ARM

Запчасти Case 580SN WT (82.100.070) - FRONT LOADER, ARM (82) - FRONT LOADER & BUCKET

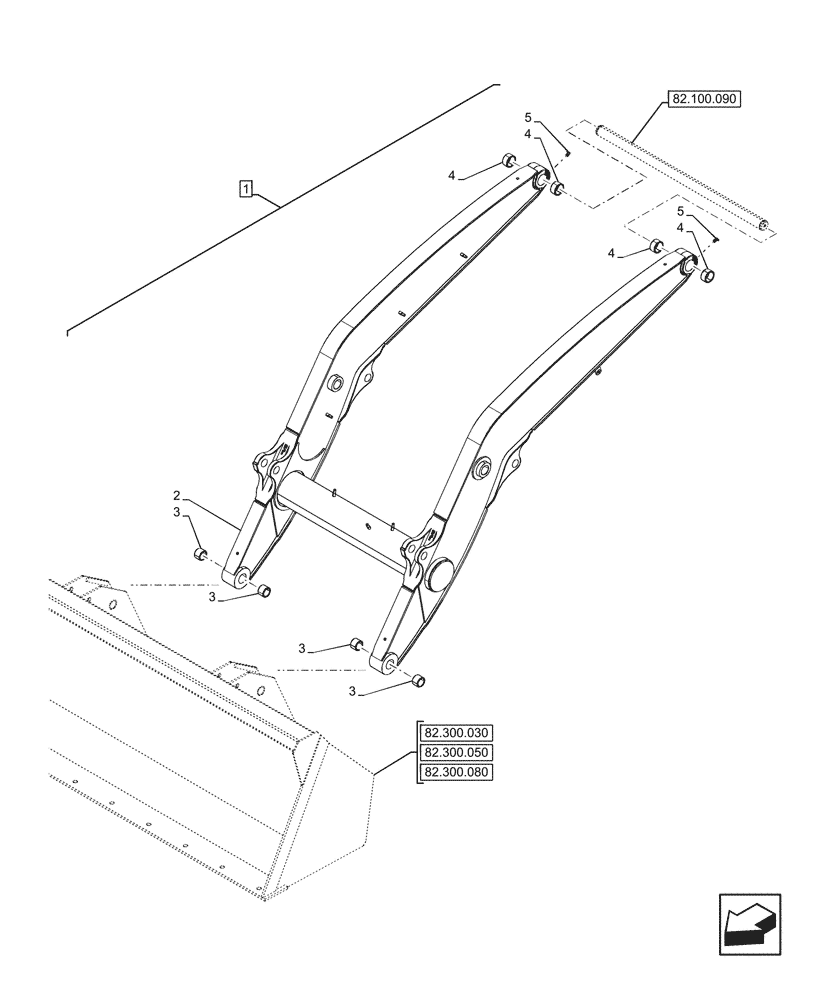

Схема запчастей Case 580SN WT - (82.100.070) - FRONT LOADER, ARM (82) - FRONT LOADER & BUCKET
82.300.030
3
4
3
1
4
5
4
3
2
3
5
4
82.300.080
82.300.050
82.100.090
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84296186

LOADER ARM

ASSY, Power Tan, Incl 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

Loader Arm, Incl in 1

1шт.

3

109268A1

BUSHING,40.3mm ID x 50mm OD x 35mm L

4шт.

4

D127542

BUSHING,50.2mm ID x 60mm OD x 30mm L

4шт.

5

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

Fitting

2шт.

Выбрано товаров: 5
