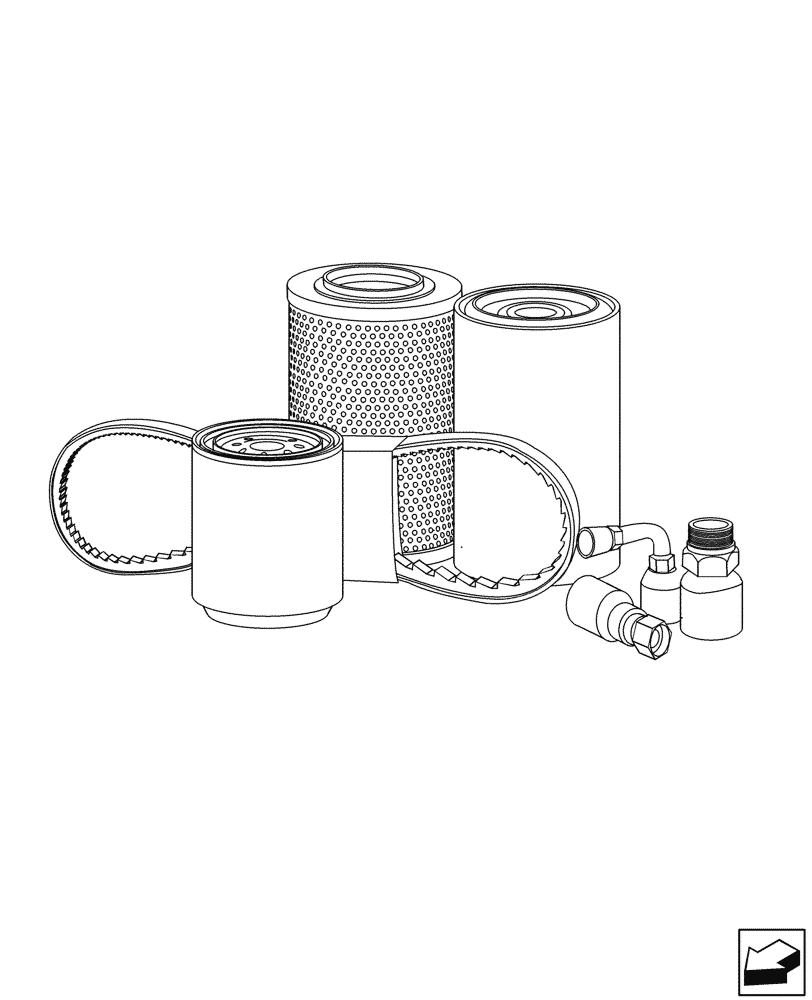

Запчасти Case 580SN WT (05.100.01) - INITIAL STOCKING LIST (LIST A) (05) - SERVICE & MAINTENANCE

1

47535939

ENGINE OIL FILTER,97.5mm OD x 92mm L, M27 x 2, 30 Micron

1шт.

2

5801477167

FILTER CARTRIDGE

Fuel, on Engine

1шт.

3

5801686484

FILTER

Engine Breather / Blow-by

1шт.

4

84217229

AIR FILTER,91mm ID x 164.5mm OD x 347mm L

Primary

1шт.

5

87682999

AIR FILTER,74.1mm ID x 94.6mm OD x 339.5mm L

Secondary

1шт.

6

360260A2

CAB FILTER,A/C, 740mm L x 140.4mm W x 50mm Thk, Pleatloc

Fresh Air, Recirculation

1шт.

7

84475948

FILTER,Spin-on, 13/16” – 16, 97mm OD x 151.6mm L

Hydraulic Oil, Transmission

1шт.

8

47833556

HYDRAULIC OIL FILTER,98.8mm OD x 239.8mm L x 500 Microns

Hydraulic Pump

1шт.

9

278534A1

FILTER SCREEN

Transmission Oil / Suction

1шт.

10

84565926

FUEL FILTER,20.6mm ID x 85mm OD x 154.3mm L, W/ Water Drain

Secondary, W/ WIF Sensor

1шт.

11

84329587

BREATHER

Hydraulic Tank

1шт.

12

377594A5

FILTER

Air Recirculation

1шт.

13

47748585

SERVICE KIT

DENOX Main Filter, on DENOX Control Unit

1шт.

Valid for 580N, 580SN, 580SN WT and 590SN Models only

1шт.

14

47802545

FILTER

DENOX Pre-Filter, on DENOX Control Unit

3шт.

Valid for 580N, 580SN, 580SN WT and 590SN Models only

1шт.

15

47674634

FILTER,11.2mm OD x 22.7 L, 70 Microns

on DEF Tank Sender Unit

1шт.

Valid for 580N, 580SN, 580SN WT and 590SN Models only

1шт.

16

84522330

V-BELT,28.88mm W x 1453.2mm L, 8 Ribs

Main

1шт.

Valid for 580N EP Model only

1шт.

17

47610648

V-BELT,28.88mm W x 1477mm L, 8 Ribs

Main, for Standard Fan

1шт.

Valid for 580N, 580SN and 580SN WT Models only

1шт.

18

47610667

V-BELT,28.88mm W x 1444.8mm L, 8 Ribs

Main, for Viscous Fan

1шт.

Valid for 580N, 580SN, 580SN WT and 590SN Models only

1шт.

19

84591722

V-BELT,14.25mm W x 1165mm L, 4 Ribs

A/C Compressor, 1165mm, 4 Ribs

1шт.
