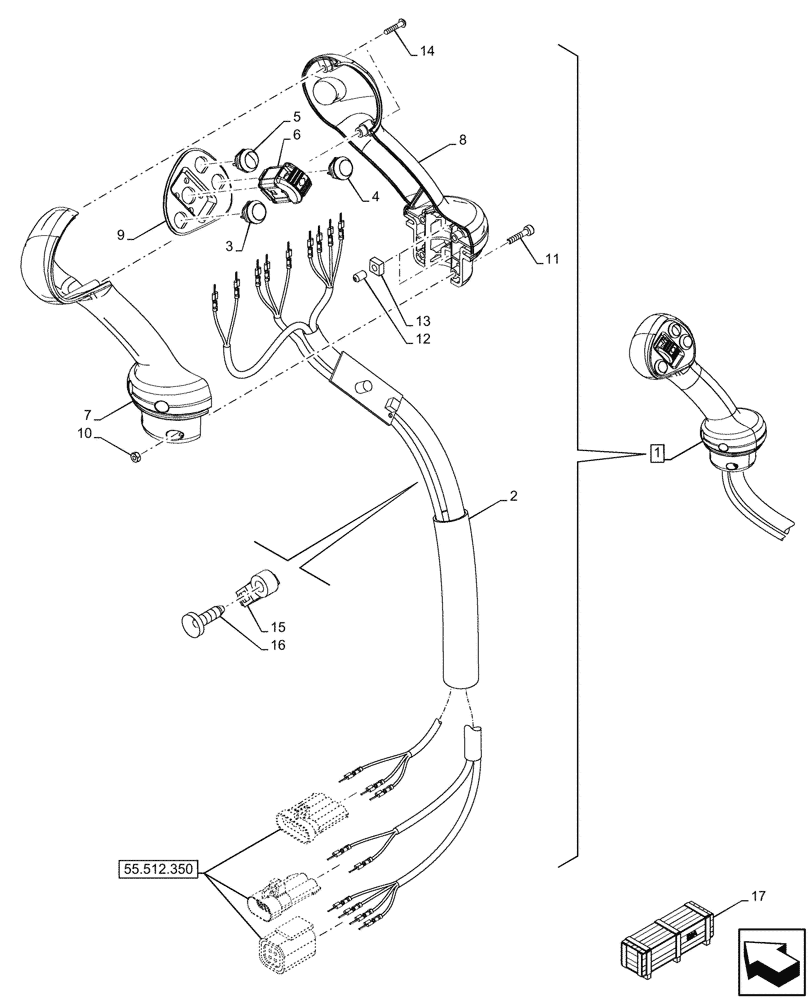

Запчасти Case 580SN WT (55.512.360) - 3-SPOOL CONTROL VALVE, SEMI-POWERSHIFT, POWERSHIFT TRANSMISSION, LOADER, JOYSTICK, COMPONENTS (55) - ELECTRICAL SYSTEMS

1

87638044

JOYSTICK

ASSY, Loader Control 4 Button, Incl 2 - 16

1шт.

2

NSS

NOT SOLD SEPARAT

Harness, Incl in 1

1шт.

3

87658706

PUSH BUTTON

Declutch

1шт.

4

87658705

PUSH BUTTON

Differential Lock

1шт.

5

87658707

PUSH BUTTON SWITCH

Kick Down

1шт.

6

87387703

PUSH BUTTON

1шт.

7

87623339

HANDLE GRIP

LH

1шт.

8

87623338

HANDLE GRIP

RH

1шт.

9

87623342

BEZEL

1шт.

10

825-1404

NUT,M4, Cl 8

4шт.

11

86639294

HEX SOC SCREW,M4 x 0.7 x 20mm, Cl 8.8

4шт.

12

87019103

SET SCREW,M6 x 10mm

2шт.

13

87638350

NUT

2шт.

14

260-16312

SELF-TAP SCREW,Pan HD, M6 x 20mm

2шт.

15

87689189

CABLE TIE,110mm L

1шт.

16

87689338

SCREW,#4 - 24 x 3/8"

1шт.

17

47788201

CONSTRUCTION DIA

Loader Valve 3 Spool, Incl 1- 16

1шт.

Valid for 580SN (Livery), 580SN WT (Livery), 590SN (Livery) Models Only, W/ Powershift Transmission

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

17

47955704

CONSTRUCTION DIA

Loader Valve 3 Spool, Incl 1- 16

1шт.

Valid for 580N (Livery) Model Only, W/ Pilot Control and Powershift Transmission

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

17

47955719

CONSTRUCTION DIA

Loader Valve 3 Spool, Incl 1- 16

1шт.

Valid for 580N (Livery) Model Only, W/ Mechanical Control and Powershift Transmission

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

17

47955736

CONSTRUCTION DIA

Loader Valve 3 Spool, Incl 1- 16

1шт.

Valid for 580SN (Livery), 580SN WT (Livery), 590SN (Livery) Models Only, W/ Mechanical Control and Powershift Transmission

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
