(55.512.230) - VALVE HEAVY LIFT, COMPONENTS, SOLENOID, 4WD

Запчасти Case 580SN WT (55.512.230) - VALVE HEAVY LIFT, COMPONENTS, SOLENOID, 4WD (55) - ELECTRICAL SYSTEMS

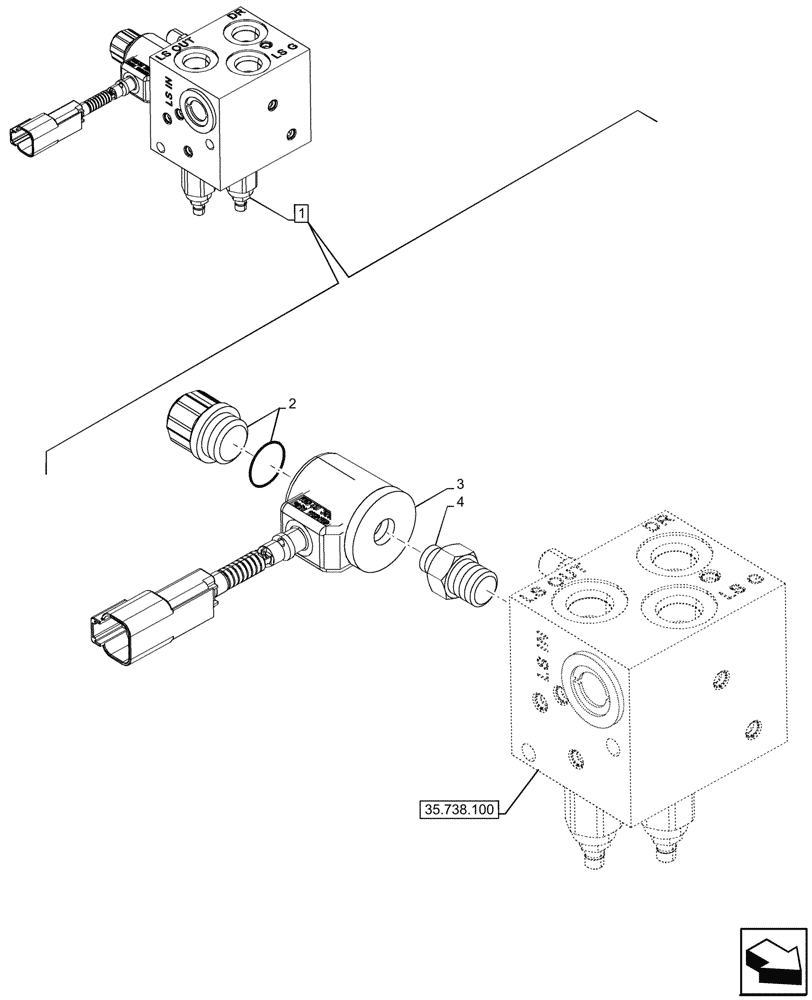

Схема запчастей Case 580SN WT - (55.512.230) - VALVE HEAVY LIFT, COMPONENTS, SOLENOID, 4WD (55) - ELECTRICAL SYSTEMS
35.738.100
1
4
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84527721

CONTROL VALVE

Heavy Lift Pilot Control

1шт.

2

84338936

SERVICE KIT

Solenoid Coil Nut, Heavy Lift

1шт.

3

84338935

COIL

1шт.

4

84545954

SOLENOID VALVE

1шт.
