(55.512.210) - VALVE HEAVY LIFT, COMPONENTS, SOLENOID, 4WD

Запчасти Case 580SN WT (55.512.210) - VALVE HEAVY LIFT, COMPONENTS, SOLENOID, 4WD (55) - ELECTRICAL SYSTEMS

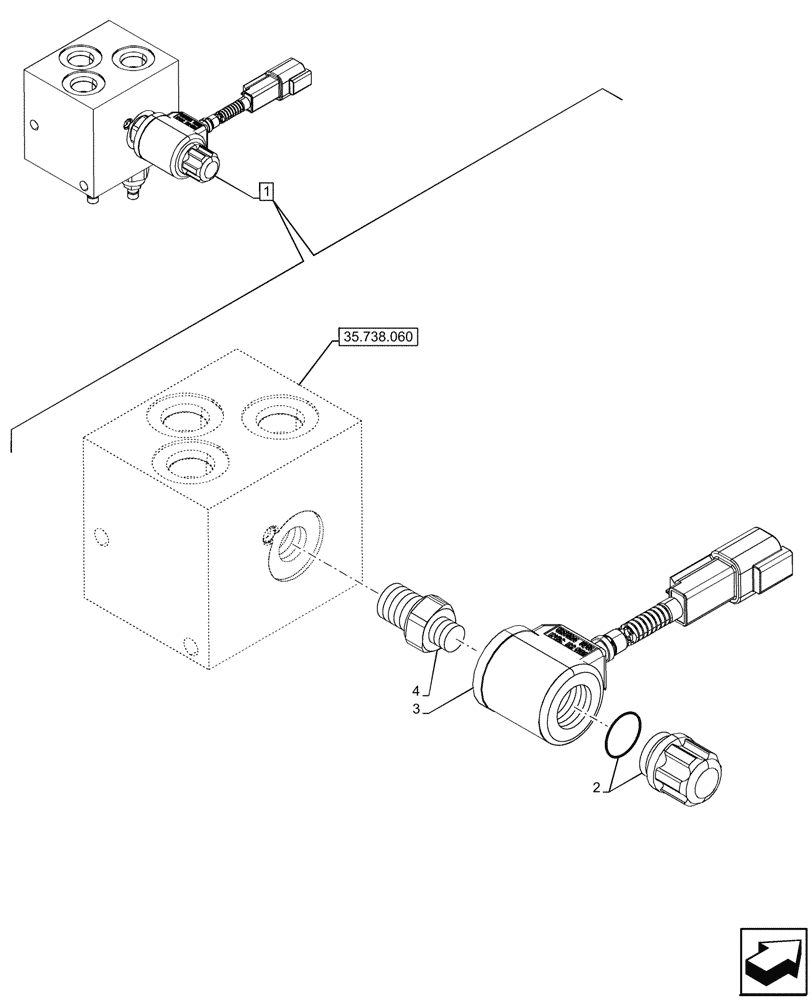

Схема запчастей Case 580SN WT - (55.512.210) - VALVE HEAVY LIFT, COMPONENTS, SOLENOID, 4WD (55) - ELECTRICAL SYSTEMS
35.738.060
1
2
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84527720

CONTROL VALVE

ASSY, Heavy Lift Mechanical Control, Incl 2 - 4

1шт.

See also Control Valve Components in Figure 35.738.060

1шт.

2

84338936

SERVICE KIT

Solenoid Coil Nut, Heavy Lift

1шт.

3

84338935

COIL

1шт.

4

84545954

SOLENOID VALVE

Power Lift

1шт.
