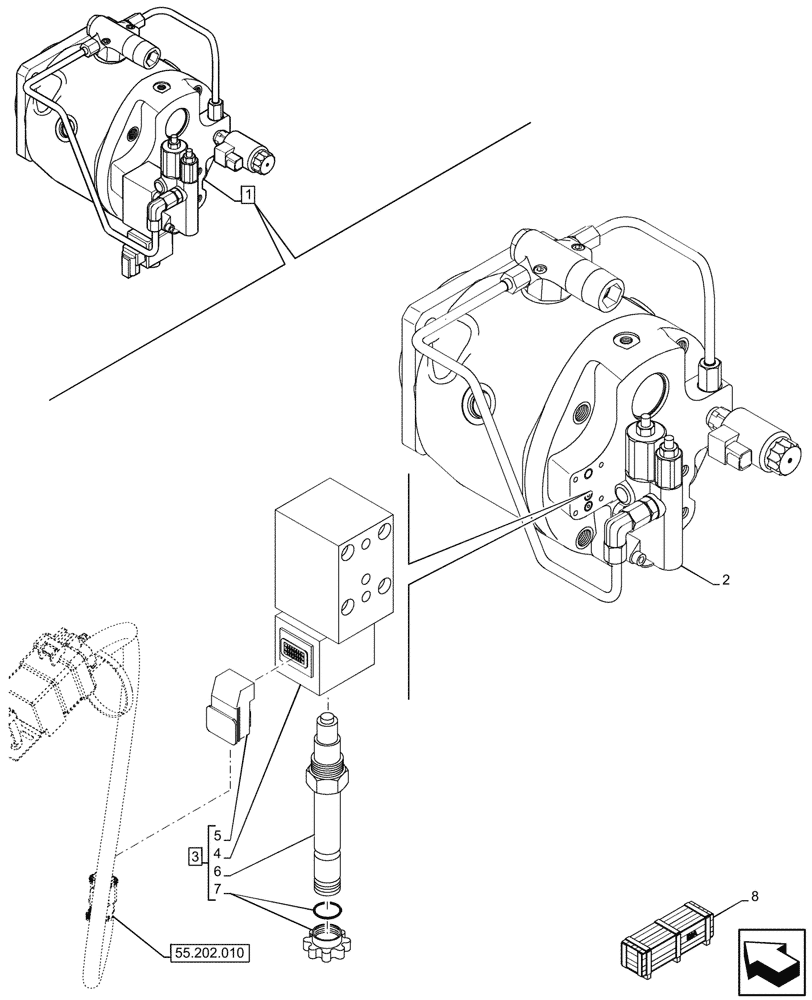

Запчасти Case 580SN WT (55.202.040) - VARIABLE DISPLACEMENT HYDRAULIC PUMP, COLD START, VALVE (W/ POWER LIFT, W/ DUAL BATTERIES) (55) - ELECTRICAL SYSTEMS

1

84545279

HYDRAULIC PUMP,71 CC

ASSY, Incl 2 - 7

1шт.

71cc, Load Sense (LS)

1шт.

See also Hydraulic Pump Components in Figures 35.106.340, 55.036.160

1шт.

84545279R

REMAN-HYD PUMP

Reman ASSY, Incl 2 - 7

1шт.

84545279C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

Valve, Incl in 1

1шт.

3

47797269

VALVE

ASSY, Cold Start, Incl 4 - 7

1шт.

To be ordered when code R978059014 is visible on the Identification Plate riveted on the Control Valve Body

1шт.

4

NSS

NOT SOLD SEPARAT

Body Valve, Incl in 3

1шт.

5

47797268

COIL

1шт.

6

47797267

CARTRIDGE

Cold Start Valve

1шт.

7

NSS

NOT SOLD SEPARAT

Plug, Incl in 3

1шт.

8

47825430

CONSTRUCTION DIA

Cold Start Aid, Supplemental, Incl 3 - 7

1шт.

Valid for 580SN (Livery), 580SN WT (Livery), 590SN (Livery) Models Only, W/ Mechanical Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
