Запчасти Case 580SN WT (55.100.040) - ENGINE, HARNESS, FUSE BOX, RELAY (55) - ELECTRICAL SYSTEMS

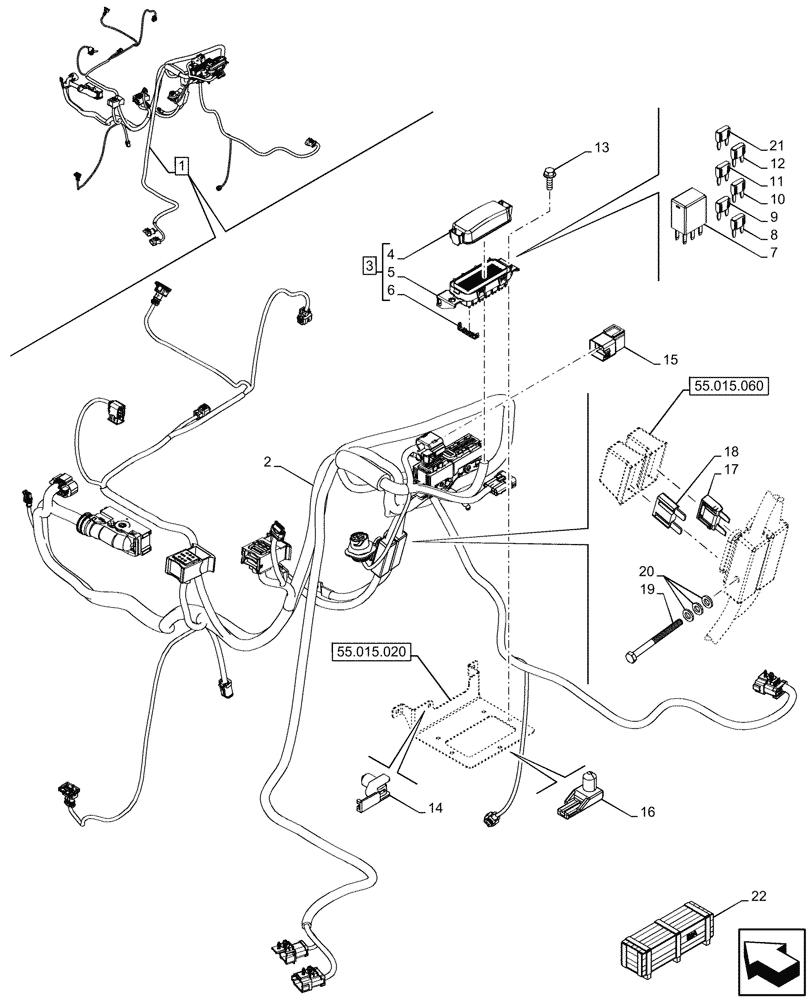

Схема запчастей Case 580SN WT - (55.100.040) - ENGINE, HARNESS, FUSE BOX, RELAY (55) - ELECTRICAL SYSTEMS
55.015.020
5
18
2
9
21
19
14
15
10
6
13
11
17
8
22
7
16
1
20
4
12
3
55.015.060

Артикул

Название

Примечание

Количество

1

48037900

WIRE HARNESS

Engine, ASSY, Incl 2 - 21

1шт.

2

NSS

NOT SOLD SEPARAT

Harness, Incl in 1

1шт.

3

84380518

FUSE BOX

ASSY, Incl 4 - 6

1шт.

4

84404932

COVER

1шт.

5

NSS

NOT SOLD SEPARAT

Support, Incl in 3

1шт.

6

84342278

CONNECTING BLOCK

6шт.

7

87655334

RELAY,12V, 35A, Micro

2шт.

8

121411A1

FUSE,7.5A, Mini, Brown

3шт.

9

121415A1

FUSE,25A, Mini, Clear

1шт.

10

121410A1

FUSE,5A, Mini, Tan

1шт.

11

121414A1

FUSE,20A, Mini, Yellow

1шт.

12

121412A1

FUSE,10A, Mini, Red

2шт.

13

845-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

2шт.

14

84386626

WIRE CONNECTOR

Bracket Clip

1шт.

15

84271717

RELAY,12V, 50A

Sealed

1шт.

16

87707841

CLIP,Hole DIA 6.35mm

1шт.

17

84157159

FUSE,40A, Maxi, Orange

1шт.

18

84253577

FUSE,60A, Maxi, Blue

1шт.

19

86508569

BOLT,Hex, M6 x 70mm, Cl 8.8

1шт.

20

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

3шт.

21

121413A1

FUSE,15A, Mini, Blue

1шт.

22

84342278

CONNECTING BLOCK

Harness, Connecting Block, Incl 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
