(55.031.100) - VAR - 423062 - TRANSMISSION, POWERSHIFT, COMPONENTS, PRESSURE SWITCH, 4WD

Запчасти Case 580SN WT (55.031.100) - VAR - 423062 - TRANSMISSION, POWERSHIFT, COMPONENTS, PRESSURE SWITCH, 4WD (55) - ELECTRICAL SYSTEMS

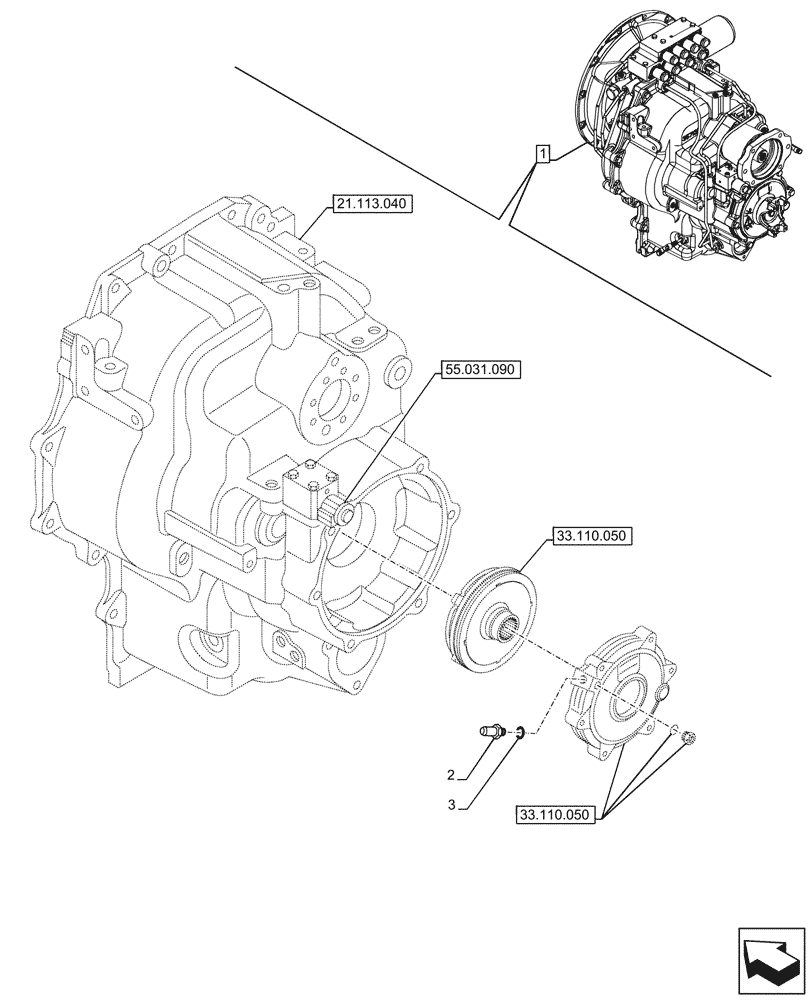

Схема запчастей Case 580SN WT - (55.031.100) - VAR - 423062 - TRANSMISSION, POWERSHIFT, COMPONENTS, PRESSURE SWITCH, 4WD (55) - ELECTRICAL SYSTEMS
55.031.090
1
2
3
21.113.040
33.110.050
33.110.050
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87567534

TRANSMISSION

ASSY, TLB 2, Powershift, Incl 2, 3

1шт.

See also Transmission Components in Figures 21.105.020, 21.105.030, 21.113.030, 21.113.040, 21.155.010, 21.155.020, 21.155.030, 21.155.040, 21.155.050, 21.155.060, 33.110.050, 55.020.030, 55.022.060, 55.024.070, 55.024.110, 55.031.090

1шт.

2

87701313

SENSOR

Transmission Oil Pressure

1шт.

3

100760A1

O-RING

1шт.

Выбрано товаров: 4
