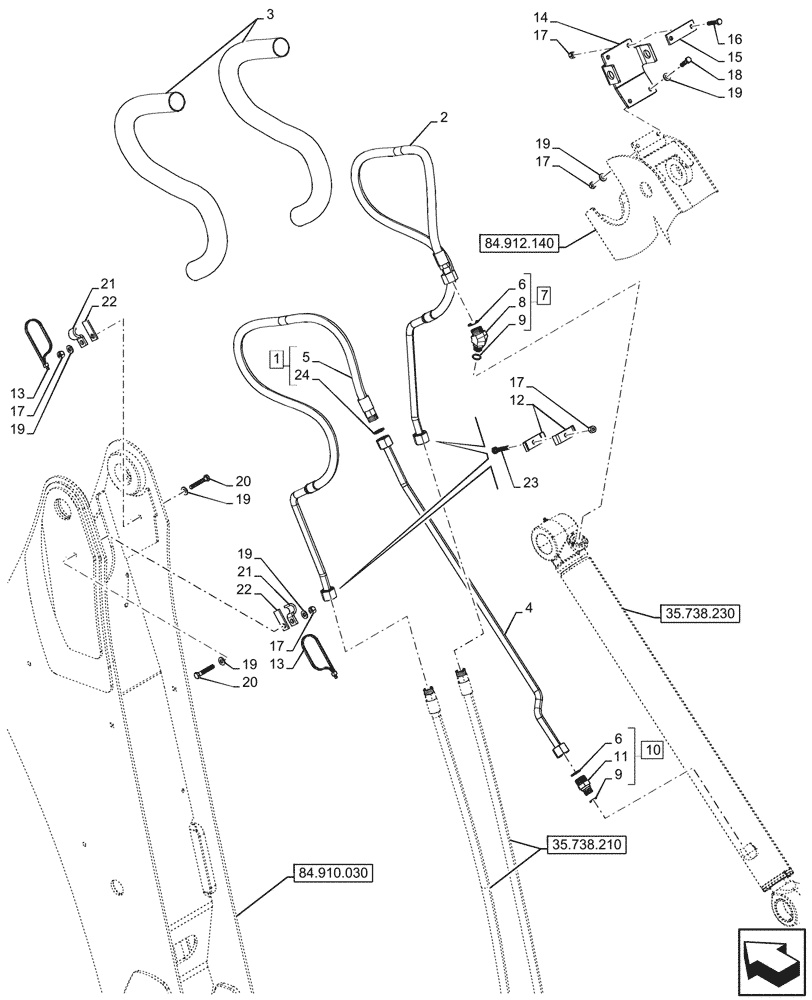

Запчасти Case 580SN WT (35.738.240) - VAR - 423076 - BACKHOE BUCKET, EXTENDABLE DIPPER, CYLINDER, LINE (35) - HYDRAULIC SYSTEMS

1

84283822

HYD TUBE

ASSY, Bucket Cylinder Rod, Incl 5, 24

1шт.

2

84283823

HYD TUBE

Bucket Cylinder Head

1шт.

3

84373395

PROTECTIVE SLEEVE,72.4mm ID x 1105mm L

2шт.

4

84305540

TUBE

Bucket Cylinder Rod

1шт.

5

NSS

NOT SOLD SEPARAT

Tube, Incl in 1

1шт.

6

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

7

201-317

ELBOW,45 Degree, 1 3/16"-12 x 1 1/16"-12. Adj, ORFS

ASSY, Incl 6 (Qty 1), 8, 9 (Qty 1)

1шт.

8

NSS

NOT SOLD SEPARAT

45° Elbow, Incl in 7

1шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

10

201-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

ASSY, Incl 6 (Qty 1), 9 (Qty 1), 11

1шт.

11

NSS

NOT SOLD SEPARAT

Connector, Incl in 10

1шт.

12

D143846

CLAMP

2шт.

13

L18331

CABLE TIE,375.9mm L, Nylon, Black

2шт.

14

84359870

BRACKET

1шт.

15

101479A1

SUPPORT

1шт.

16

120113

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8, Full Thd

2шт.

17

412141

NUT,M10 x 1.5, Cl 8

7шт.

18

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

19

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

8шт.

20

43144

BOLT,Hex, M10 x 70mm, Cl 8.8

2шт.

21

84367726

CLAMP,3/4" Clamping tube

2шт.

22

84259030

SPACER

2шт.

23

120071

BOLT,Hex, M10 x 65, 8.8

1шт.

24

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.
