(35.738.100) - HYDRAULIC LIFT, W/ MECHANICAL LIFT, VALVE, COMPONENTS, 4WD

Запчасти Case 580SN WT (35.738.100) - HYDRAULIC LIFT, W/ MECHANICAL LIFT, VALVE, COMPONENTS, 4WD (35) - HYDRAULIC SYSTEMS

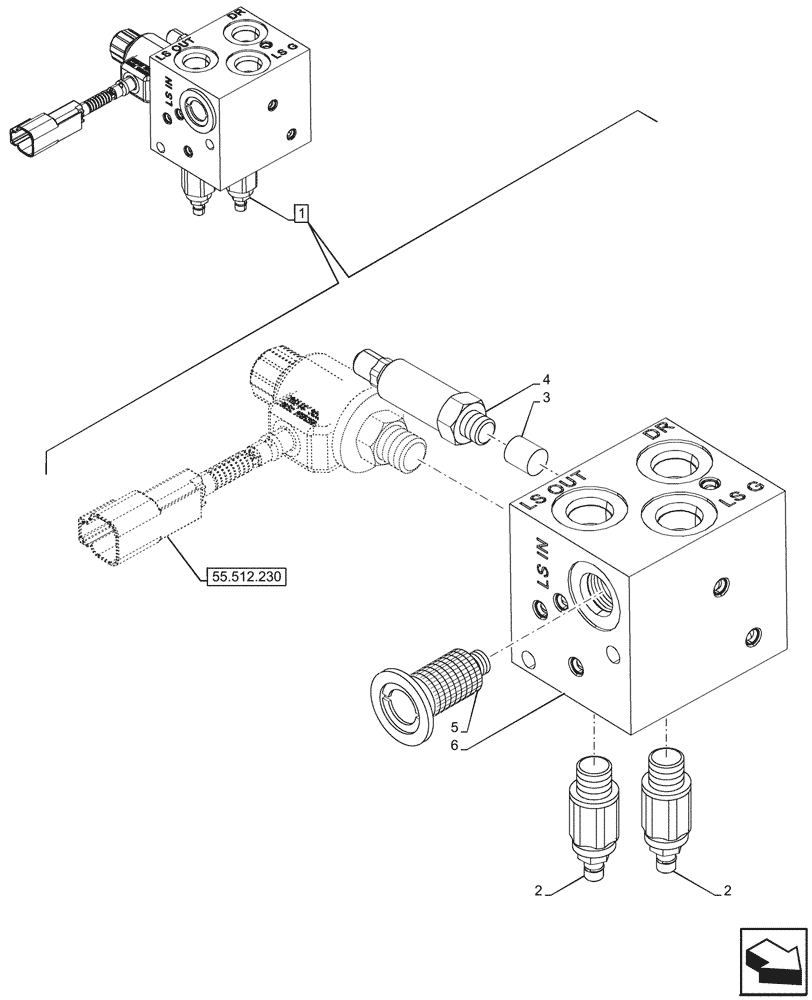

Схема запчастей Case 580SN WT - (35.738.100) - HYDRAULIC LIFT, W/ MECHANICAL LIFT, VALVE, COMPONENTS, 4WD (35) - HYDRAULIC SYSTEMS
55.512.230
3
2
6
4
1
2
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84527721

CONTROL VALVE

Heavy Lift Pilot Control

1шт.

2

84338932

VALVE

Heavy Lift Relief

2шт.

3

84564260

FILTER SCREEN

Heavy Lift Pilot

1шт.

4

84338937

VALVE

Heavy Lift Load Sense Drain

1шт.

5

84564258

ORIFICE,0.11" ID

1шт.

6

NSS

NOT SOLD SEPARAT

Body Valve, Incl in 1

1шт.

Выбрано товаров: 6
