Запчасти Case 580SN WT (35.736.040) - BACKHOE BOOM CYL. SECTION, CYLINDER, COMPONENTS (35) - HYDRAULIC SYSTEMS

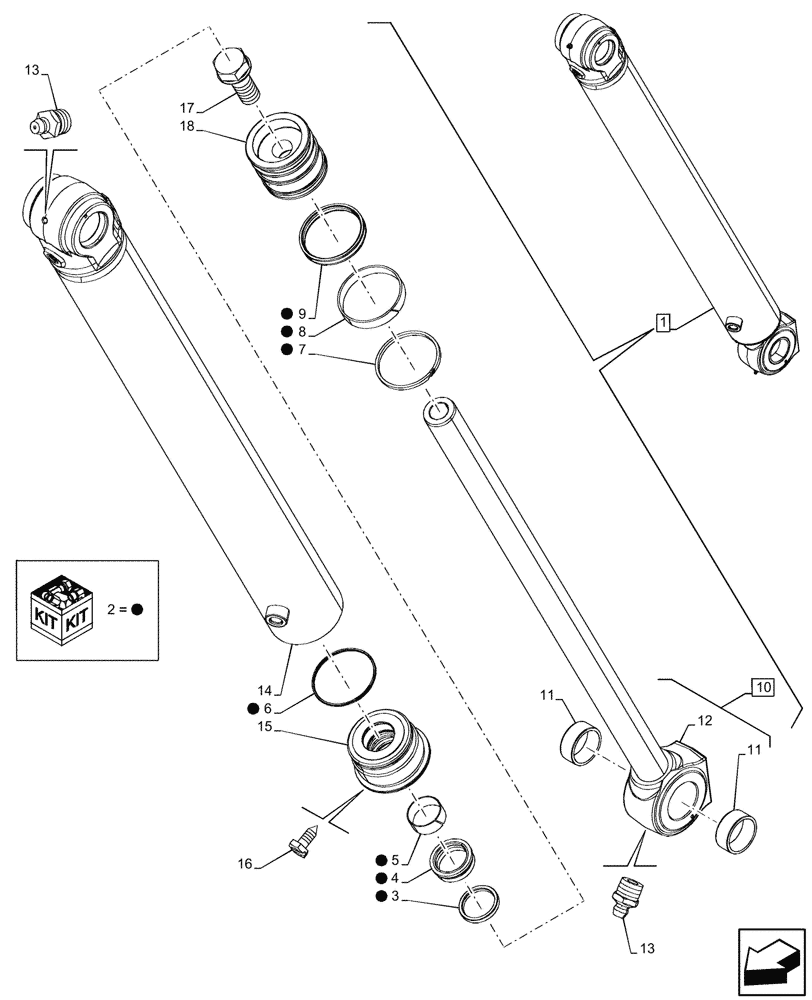

Схема запчастей Case 580SN WT - (35.736.040) - BACKHOE BOOM CYL. SECTION, CYLINDER, COMPONENTS (35) - HYDRAULIC SYSTEMS
9
10
2
6
1
2
13
11
5
2
2
4
12
2
14
2
7
15
16
17
11
18
8
2
13
3
2

Артикул

Название

Примечание

Количество

1

84421588

HYDRAULIC CYLINDER,Double Acting, 63.5mm Rod, 127.0mm Bore, 971.6mm Stroke

ASSY, Grey, Boom, Incl 2 - 18

1шт.

2

84259219

SEAL KIT,63.5mm Rod x 127.0mm Bore

ASSY, Backhoe Boom Cylinder, Incl 3 - 9

1шт.

3

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

1шт.

4

1542879C1

SEAL KIT,63.5mm Rod x 88.9mm Bore

Boom Cylinder, Rod & Buffer

1шт.

5

G109908

BUSHING,63.5mm ID x 66.57mm OD x 25.15mm L

1шт.

6

87615485

SEAL,118.72mm ID x 125.88mm OD x 4.85mm Thk

1шт.

7

117359A1

RING,Locking, 120.54mm ID x 131mm OD x 6.33mm Thk

1шт.

8

G102090

RING,127mm OD, Ext

1шт.

9

87715789

SEAL,127mm OD

1шт.

10

84321895

ROD,63.5mm OD x 1241.2mm L

ASSY, Incl 11, 12

1шт.

11

123407A1

BUSHING,60.19mm ID x 70mm OD x 28mm L

2шт.

12

NSS

NOT SOLD SEPARAT

Rod, Incl in 10

1шт.

13

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

14

84394386

BARREL,126.85mm Bore Dia

1шт.

15

84205602

GLAND

1шт.

16

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

17

86982443

SPECIAL BOLT,1" 3/8 x 3.50 L

1шт.

18

84204689

PISTON ROD/GLAND

1шт.

Выбрано товаров: 18
