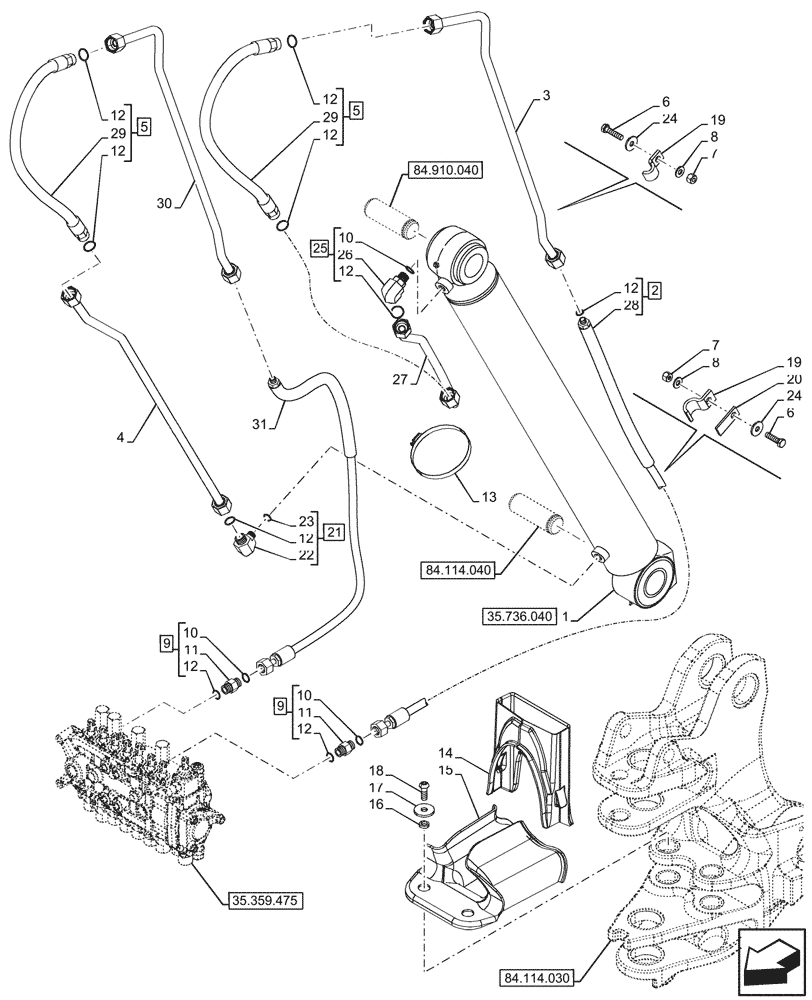

Запчасти Case 580SN WT (35.736.030) - BACKHOE BOOM CYL. SECTION, CYLINDER, LINE (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
1
84421588
HYDRAULIC CYLINDER,Double Acting, 63.5mm Rod, 127.0mm Bore, 971.6mm Stroke
ASSY, Grey, Boom
1шт.
2
84257632
HYDRAULIC HOSE,15.88mm ID x 2043mm L, SAE 100R16
ASSY, Valve to Boom, Incl 12 (Qty 1), 28
1шт.
3
48002248
HYD TUBE
Boom Cylinder Head End
1шт.
4
48001762
HYD TUBE
Boom Cylinder Rod
1шт.
5
48001955
HYDRAULIC HOSE
ASSY, Boom Cylinder Rod, Incl 12 (Qty 4), 29
2шт.
7
412141
NUT,M10 x 1.5, Cl 8
4шт.
8
87655046
SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk
4шт.
9
9840535
HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB
ASSY, Incl 10 (Qty 2), 11, 12 (Qty 2)
2шт.
10
167266
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
3шт.
11
NSS
NOT SOLD SEPARAT
Connector, Incl in 9
2шт.
13
214-31104
HOSE CLAMP,5-3/4" - 6-5/8", HD Worm
3шт.
14
84574630
GUARD
Black
1шт.
15
84303525
GUARD
Black
1шт.
16
84286039
SPACER,13.87mm ID x 21.34mm OD x 5.4mm Thk
2шт.
17
9511052
WASHER,13.5mm ID x 44mm OD x 4mm Thk
2шт.
18
84299393
HEX SOC SCREW,Hex Socket Button Head, M12 x 1.75 x 35mm, Cl. 10.9
2шт.
19
84367726
CLAMP,3/4" Clamping tube
4шт.
20
84259030
SPACER
2шт.
21
87656136
HYD CONNECTOR
ASSY, Incl 12 (Qty 1), 22, 23
1шт.
22
NSS
NOT SOLD SEPARAT
90° Elbow, Incl in 21
1шт.
24
87687101
WASHER,10.65mm ID x 31mm OD x 3.3mm Thk
4шт.
25
9846848
90 ELBOW,1-3/16"-12 ORFS x 1-1/16"-12 ORB
ASSY, Incl 10 (Qty 1), 12 (Qty 1), 26
1шт.
26
NSS
NOT SOLD SEPARAT
90° Elbow, Incl in 25
1шт.
27
48000440
HYD TUBE
Boom Cylinder Head
1шт.
28
NSS
NOT SOLD SEPARAT
Hose, Incl in 2
1шт.
29
NSS
NOT SOLD SEPARAT
Tube, Incl in 5
2шт.
30
48002163
HYD TUBE
Boom Cylinder Rod End
1шт.
31
84263635
HYDRAULIC HOSE,15.88mm ID x 2064mm L, SAE 100R16
Valve to Boom
1шт.
Выбрано товаров: 31
