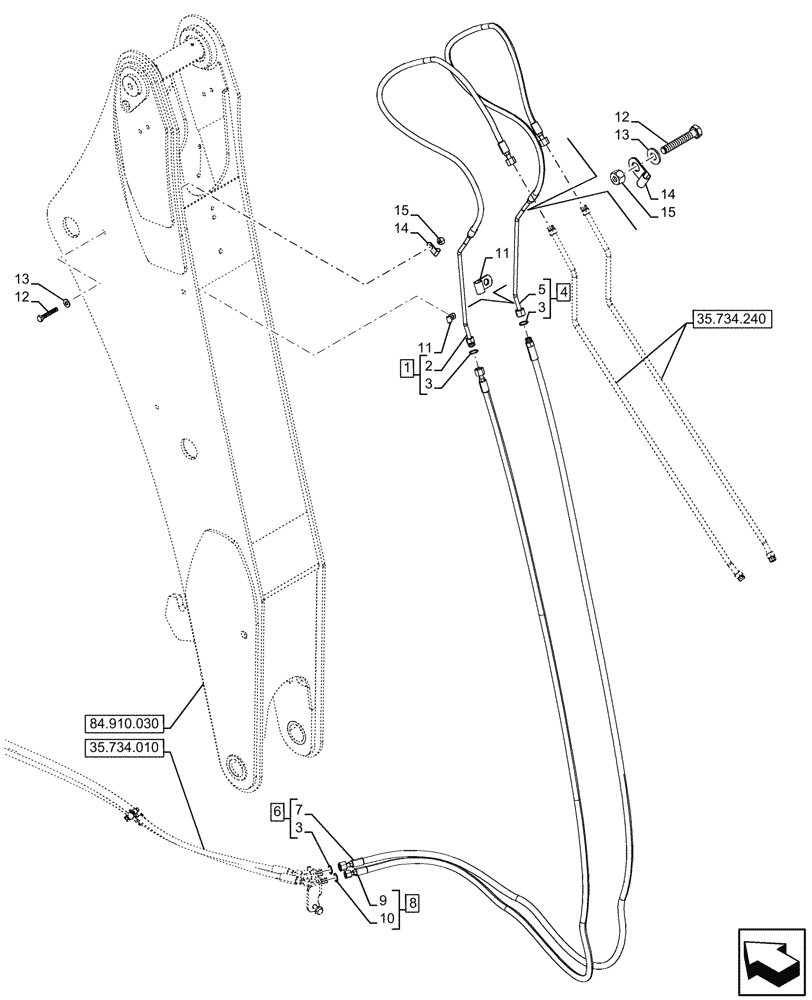

Запчасти Case 580SN WT (35.734.250) - EXTENDABLE DIPPER, HYDRAULIC COUPLER, LINES (35) - HYDRAULIC SYSTEMS

1

84338021

HYD TUBE

ASSY, Coupler Boom to Dipper, Incl 2, 3 (Qty 1)

1шт.

2

NSS

NOT SOLD SEPARAT

Tube, Incl in 1

1шт.

3

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

4

84338005

HYD TUBE

ASSY, Coupler Boom to Dipper, Incl 3 (Qty 1), 5

1шт.

5

NSS

NOT SOLD SEPARAT

Tube, Incl in 4

1шт.

6

84336702

HOSE ASSY.,6.3mm ID x 2878mm L

Coupler Boom, Incl 3 (Qty 1), 7

1шт.

7

NSS

NOT SOLD SEPARAT

Tube, Incl in 6

1шт.

8

84336704

HOSE ASSY.,6.3mm ID x 2836mm L

Coupler Boom, Incl 9, 10

1шт.

9

NSS

NOT SOLD SEPARAT

Tube, Incl in 8

1шт.

10

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

11

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

2шт.

12

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

2шт.

13

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.

14

515-2595

CLAMP,3/8", Insul, 1/2" Bolt

2шт.

15

412141

NUT,M10 x 1.5, Cl 8

2шт.
