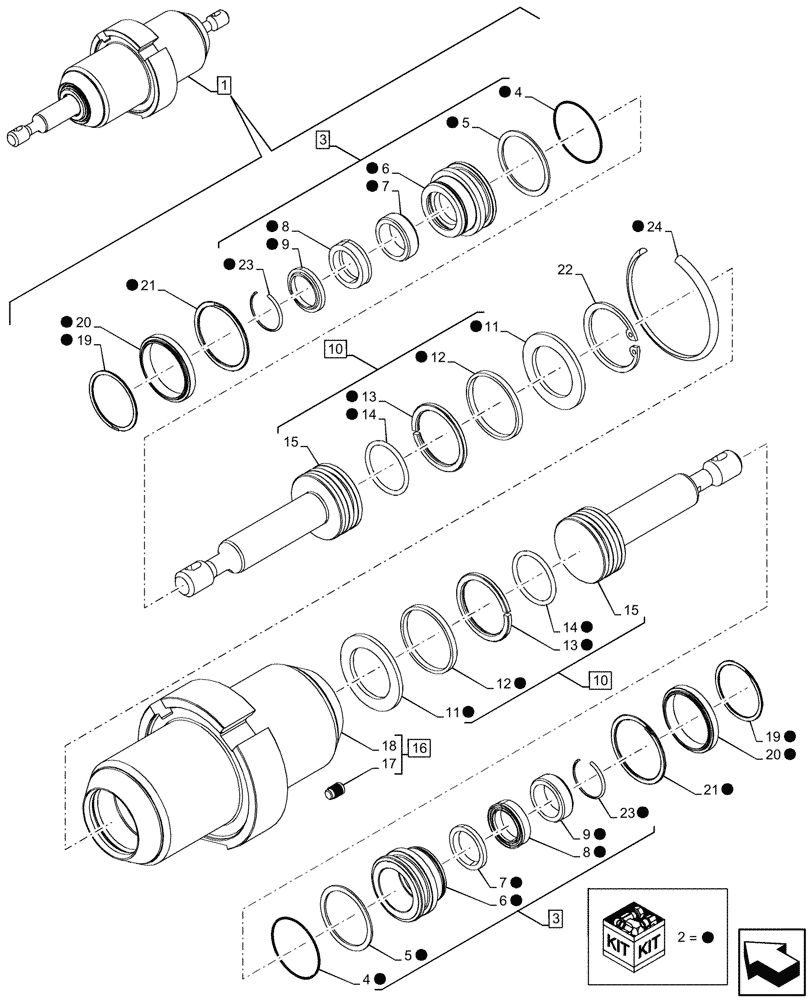

Запчасти Case 580SN WT (35.734.190) - VAR - 442017 - QUICK COUPLER, CYLINDER, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

84270939

HYDRAULIC CYLINDER,Double Acting, 19.1mm Rod, 80.6mm Stroke

ASSY, Incl 2 - 24

1шт.

2

84270949

SEAL KIT

ASSY, Backhoe Quick Coupler, Incl 3 - 9, 11 - 14, 19 - 21, 23, 24

1шт.

3

84270943

GLAND

2шт.

4

238-6218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 6, 90 Duro

2шт.

5

87615853

BACK-UP RING,32mm ID x 38mm OD x 1.09mm Thk

2шт.

6

NSS

NOT SOLD SEPARAT

Gland, Incl in 3

2шт.

7

NSS

NOT SOLD SEPARAT

Bushing, Incl in 3

2шт.

8

D83187

SEAL,19.05mm ID x 25.4mm OD x 7.18mm W

2шт.

9

A44651

WIPER SEAL,18.49mm ID x 25.3mm OD x 3.63mm Thk

2шт.

10

399909A3

ROD,19.1mm Dia, 38.1mm Bore

ASSY, Incl 11 - 15

2шт.

11

353078A1

RING,27.35mm ID x 29.97mm OD x 2.59mm W

2шт.

12

353079A1

SEAL,37.24mm Id x 39.09mm OD x 3.07mm W

2шт.

13

384844A1

RING,35.46mm ID x 39.2mm OD x 2.7mm W

2шт.

14

395609A1

O-RING,26.7mm ID x 2.38mm Width

2шт.

15

399907A2

ROD,19.1mm Dia, 38.1mm Bore x 100.50mm L

2шт.

16

87615850

TUBE,38.1 mm ID

ASSY, Incl 17, 18

1шт.

17

369263A1

PLUG,6mm OD x 4mm L

4шт.

18

NSS

NOT SOLD SEPARAT

Tube, Incl in 16

1шт.

19

102-12125

SNAP RING,#125, 1.188", Ext Spiral

2шт.

20

84270950

SPACER,31.8mm ID x 38mm OD x 6.5mm Thk

2шт.

21

102-23150

SNAP RING,#150, 1.591", Int, Spiral

2шт.

22

800-6138

SNAP RING,M38, Int

1шт.

23

390317A1

RING,43.5,44mm OD x 1.35,1.50mm Thk

Service

2шт.

24

445364A1

SEALING RING,88mm OD

Service

1шт.
