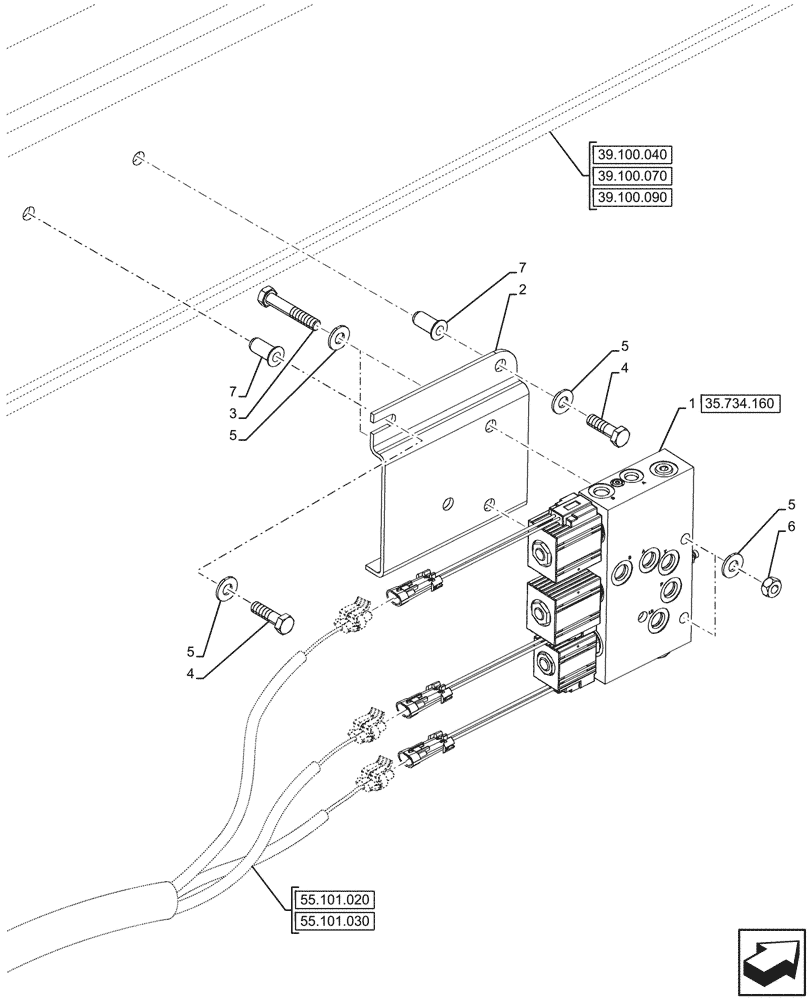

Запчасти Case 580SN WT (35.734.150) - DOUBLE, QUICK COUPLER, VALVE (35) - HYDRAULIC SYSTEMS

1

87435910

SOLENOID VALVE

ASSY, Hydraulic Coupler Double

1шт.

2

84275116

BRACKET

Coupler Valve

1шт.

3

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

4

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

5

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

6шт.

6

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

7

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

2шт.
