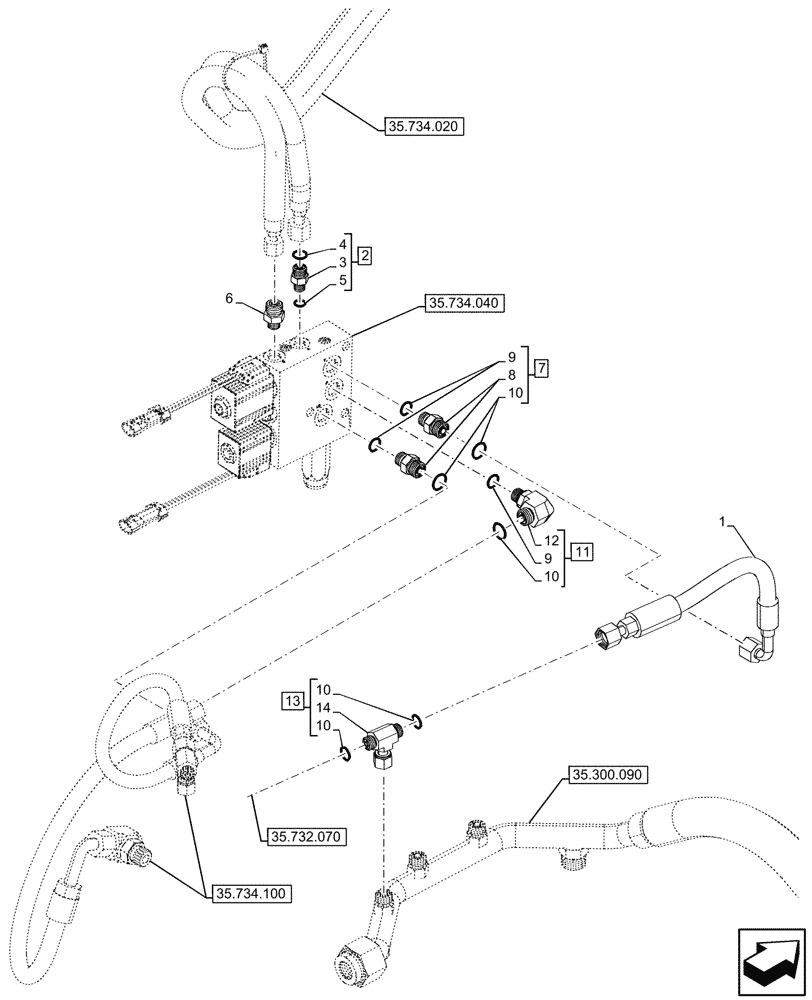

Запчасти Case 580SN WT (35.734.060) - QUICK COUPLER, VALVE, HYDR LINES (35) - HYDRAULIC SYSTEMS

1

84514721

HOSE ASSY.,10mm ID x 360mm L

Coupler, Return

1шт.

2

87681202

HYD CONNECTOR,9/16" - 18 ORFS x 7/16" - 20 ORB

ASSY, Incl 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

Connector, Incl in 2

1шт.

4

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

5

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

6

84261550

FITTING,11/16"-6 ORFS x 1/2"-5 ORB

1шт.

7

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

ASSY, Incl 8, 9 (Qty 2), 10 (Qty 2)

2шт.

8

NSS

NOT SOLD SEPARAT

Connector, Incl in 7

2шт.

9

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3шт.

10

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

5шт.

11

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

ASSY, Incl 9 (Qty 1), 10 (Qty 1), 12

1шт.

12

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 11

1шт.

13

86591334

TEE,11/16"-16 ORFS x 11/16"-16 Fem

ASSY, Incl 10 (Qty 2), 14

1шт.

14

NSS

NOT SOLD SEPARAT

Tee, Incl in 13

1шт.
