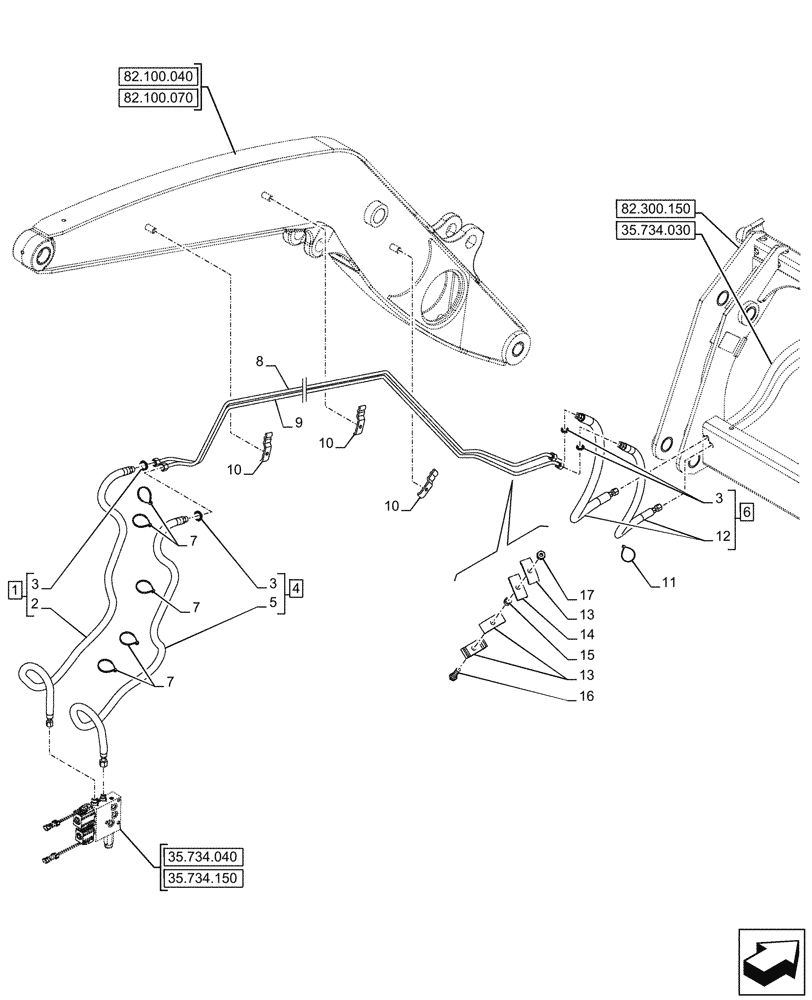

Запчасти Case 580SN WT (35.734.020) - VAR - 423049 - QUICK COUPLER, VALVE, HYDR LINES (35) - HYDRAULIC SYSTEMS

1

84337930

HOSE,6.35mm ID x 1497mm L, SAE 100R16

ASSY, Coupler Valve Port B, Incl 2, 3 (Qty 1)

1шт.

2

NSS

NOT SOLD SEPARAT

Hose, Incl in 1

1шт.

3

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

4

84311873

HOSE,6.35mm ID x 1497mm L, SAE 100R16

ASSY, Coupler Valve Port A, Incl 3 (Qty 1), 5

1шт.

5

NSS

NOT SOLD SEPARAT

Hose, Incl in 4

1шт.

6

84266292

HYDRAULIC HOSE,6.35mm ID x 740mm L, SAE 100R16

ASSY, Loader Coupler-Bucket End, Incl 3 (Qty 2), 12

2шт.

7

86566989

CABLE TIE,208mm L

5шт.

8

84401877

HYD TUBE

Coupler Valve Port A to Quick Coupler

1шт.

9

84401879

HYD TUBE

Coupler Valve Port B to Quick Coupler

1шт.

10

302820A2

CLAMP

3шт.

11

L11541

CABLE TIE,203.2mm L, Nylon

1шт.

12

NSS

NOT SOLD SEPARAT

Hose, Incl in 6

2шт.

13

D138055

CLAMP

3шт.

14

84346489

PLATE

1шт.

15

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

1шт.

16

120073

BOLT,Hex, M10 x 86.58mm, Cl 8.8

1шт.

17

412141

NUT,M10 x 1.5, Cl 8

1шт.
