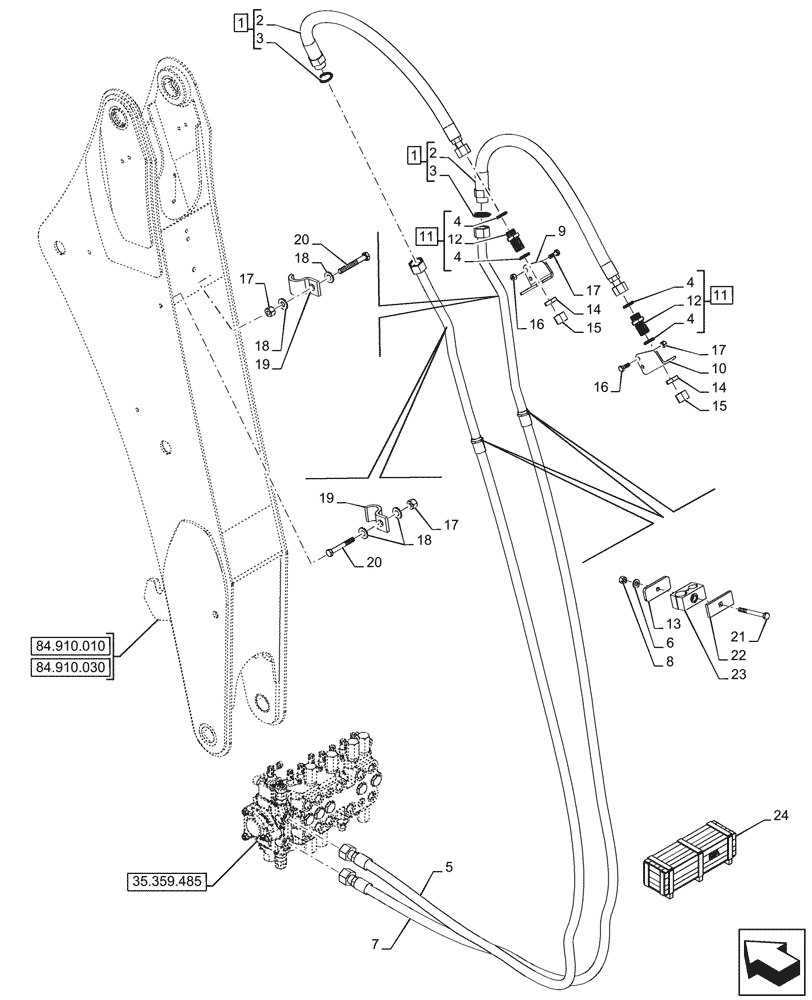

Запчасти Case 580SN WT (35.726.060) - AUXILIARY HYDRAULIC, W/ STANDARD DIPPER (35) - HYDRAULIC SYSTEMS

1

84322596

HOSE,19.05mm ID x 906mm L, SAE 100R16

ASSY, Standard Auxiliary, Incl 2, 3

2шт.

2

NSS

NOT SOLD SEPARAT

Hose, Incl in 1

2шт.

3

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

4

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

4шт.

5

84280511

HYD TUBE,19mm ID x 2759mm L

Standard Valve to Auxiliary Port A

1шт.

6

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

7

84280510

HYD TUBE,19mm ID x 2805mm L

Standard Valve to Auxiliary Port B

1шт.

8

412250

NUT,M8 x 1.25, Cl 8

2шт.

9

84305006

BRACKET

LH

1шт.

10

84305054

BRACKET

RH

1шт.

11

201-140

HYD CONNECTOR,1-3/16" - 12, Blkhd, ORFS

ASSY, Incl 4, 12

2шт.

12

NSS

NOT SOLD SEPARAT

Connector, Incl in 11

2шт.

13

84342644

PLATE

2шт.

14

218-1249

BHD LOCK NUT,1-3/16" - 12

2шт.

15

201-907

CAP,1-3/16" - 12 ORFS

2шт.

16

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

4шт.

17

412141

NUT,M10 x 1.5, Cl 8

6шт.

18

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

4шт.

19

242459A1

SHIN

2шт.

20

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

21

120108

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8, Full Thd

2шт.

22

84283495

SECURING STRAP

2шт.

23

87000146

CLAMP

2шт.

24

47358915

CONSTRUCTION DIA

Uni-Directional, Standard Dipper, Pilot Control, Incl 1 - 23

1шт.

Valid for 580SN, 580SN WT Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

24

47501543

CONSTRUCTION DIA

No Auxiliary to Combo, Standard Dipper, Pilot Control, Incl 1 - 23

1шт.

Valid for 580SN, 580SN WT Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

24

47501545

CONSTRUCTION DIA

No Auxiliary to Combo, Standard Dipper, Pilot Control, Incl 1 - 23

1шт.

Valid for 580N EP, 580N Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

24

47674141

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Incl 1 - 23

1шт.

Valid for 580N EP (Livery) Model Only, W/ Mechanical Control and Standard Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

24

47674176

CONSTRUCTION DIA

Uni-Directional, Incl 1 - 23

1шт.

Valid for 580N EP (Livery) Model Only, W/ Mechanical Control and Standard Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

24

47945923

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Incl 1 - 23

1шт.

Valid for 580N (Livery), 580SN (Livery), 580SN WT (Livery) Models Only, W/ Mechanical Control and Standard Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

24

84544872

CONSTRUCTION DIA

Uni-Directional, Incl 1 - 23

1шт.

Valid for 580N EP (Livery), 580N (Livery) Models Only, W/ Standard Dipper and Pilot Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

24

84546986

CONSTRUCTION DIA

Uni-Directional, Incl 1 - 23

1шт.

Valid for 580N (Livery), 580SN (Livery), 580SN WT (Livery) Models Only, W/ Mechanical Control and Standard Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
