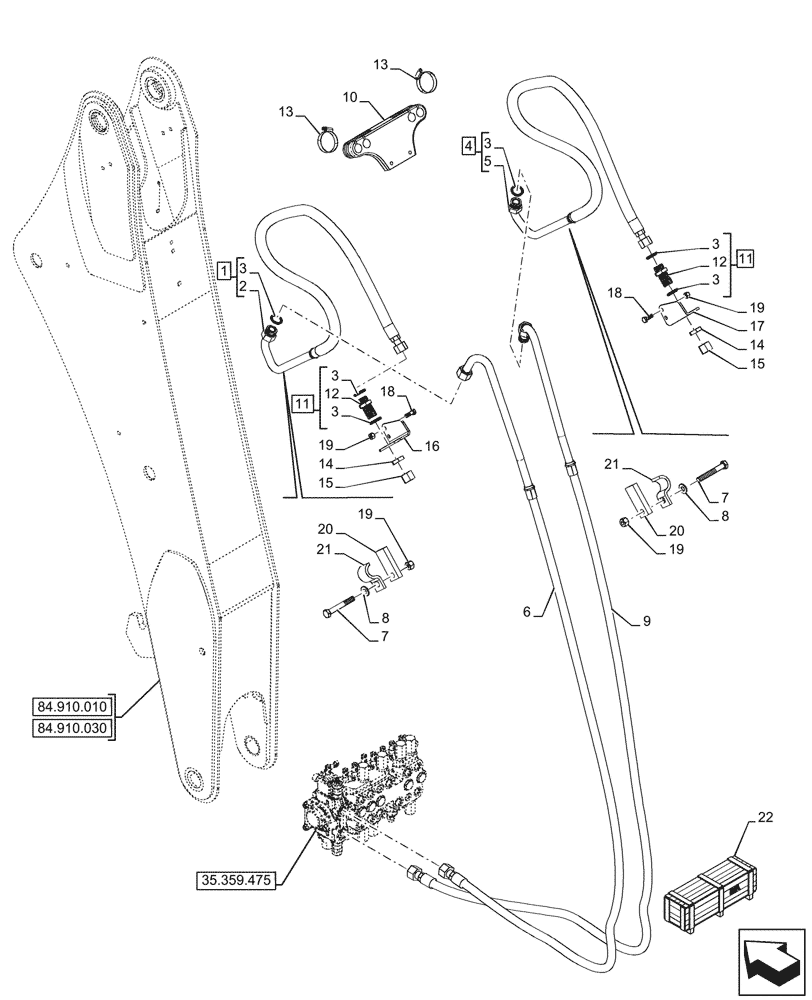

Запчасти Case 580SN WT (35.726.050) - EXTENDABLE DIPPER, AUXILIARY HYDRAULIC, W/ STANDARD CLIMATE (35) - HYDRAULIC SYSTEMS

1

84312502

HYD TUBE,19mm ID x 1656mm L

ASSY, Extendable Valve to Auxiliary Port B, Incl 2, 3 (Qty 1)

1шт.

2

NSS

NOT SOLD SEPARAT

Tube, Port B, Incl in 1

1шт.

3

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

6шт.

4

84312504

HYD TUBE,19mm ID x 1656mm L

ASSY, Extendable Valve to Auxiliary Port A, Incl 3 (Qty 1), 5

1шт.

5

NSS

NOT SOLD SEPARAT

Tube, Port B, Incl in 4

1шт.

6

84280508

HYD TUBE,19mm ID x 2756mm L

Extendable Valve to Auxiliary Port A

1шт.

7

83931335

BOLT,Hex, M10 x 1.5 x 75mm, Cl 8.8

2шт.

8

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.

9

84323529

TUBE

Extendable Valve to Auxiliary Port B

1шт.

10

84359766

SUPPORT

Hose Dual Auxiliary Hydraulic

1шт.

11

201-140

HYD CONNECTOR,1-3/16" - 12, Blkhd, ORFS

ASSY, Incl 3 (Qty 4), 12

2шт.

12

NSS

NOT SOLD SEPARAT

Connector, Incl in 11

2шт.

13

214-3156

HOSE CLAMP,2-3/4" - 3-5/8", HD Worm

2шт.

14

218-1249

BHD LOCK NUT,1-3/16" - 12

2шт.

15

201-907

CAP,1-3/16" - 12 ORFS

2шт.

16

84305006

BRACKET

LH

1шт.

17

84305054

BRACKET

RH

1шт.

18

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

4шт.

19

412141

NUT,M10 x 1.5, Cl 8

6шт.

20

84299978

PLATE

2шт.

21

242459A1

SHIN

2шт.

22

47359725

CONSTRUCTION DIA

Uni-Directional, Extendable Dipper, Pilot Control, Incl 1 - 21

1шт.

Valid for 580SN, 580SN WT Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

22

47501547

CONSTRUCTION DIA

No Auxiliary to Combo, Incl 1 - 21

1шт.

Valid for 580N EP (Livery), 580N (Livery) Models Only, W/ Extendable Dipper and Pilot Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

22

47662021

CONSTRUCTION DIA

No Auxiliary to Combo, Incl 1 - 21

1шт.

Valid for 580SN (Livery), 580SN WT (Livery) Models Only, W/ Extendable Dipper and Pilot Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

22

47674139

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Incl 1 - 21

1шт.

Valid for 580N EP (Livery) Model Only, W/ Mechanical Control and Extendable Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

22

47674177

CONSTRUCTION DIA

Uni-Directional, Incl 1 - 21

1шт.

Valid for 580N EP (Livery) Model Only, W/ Mechanical Control and Extendable Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

22

47945925

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Incl 1 - 21

1шт.

Valid for 580N (Livery), 580SN (Livery), 580SN WT (Livery) Models Only, W/ Mechanical Control and Extendable Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

22

84544875

CONSTRUCTION DIA

Uni-Directional, Incl 1 - 21

1шт.

Valid for 580N EP (Livery), 580N (Livery) Models Only, W/ Extendable Dipper and Pilot Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

22

84546989

CONSTRUCTION DIA

Uni-Directional, Incl 1 - 21

1шт.

Valid for 580N (Livery), 580SN (Livery), 580SN WT (Livery) Models Only, W/ Mechanical Control and Extendable Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
