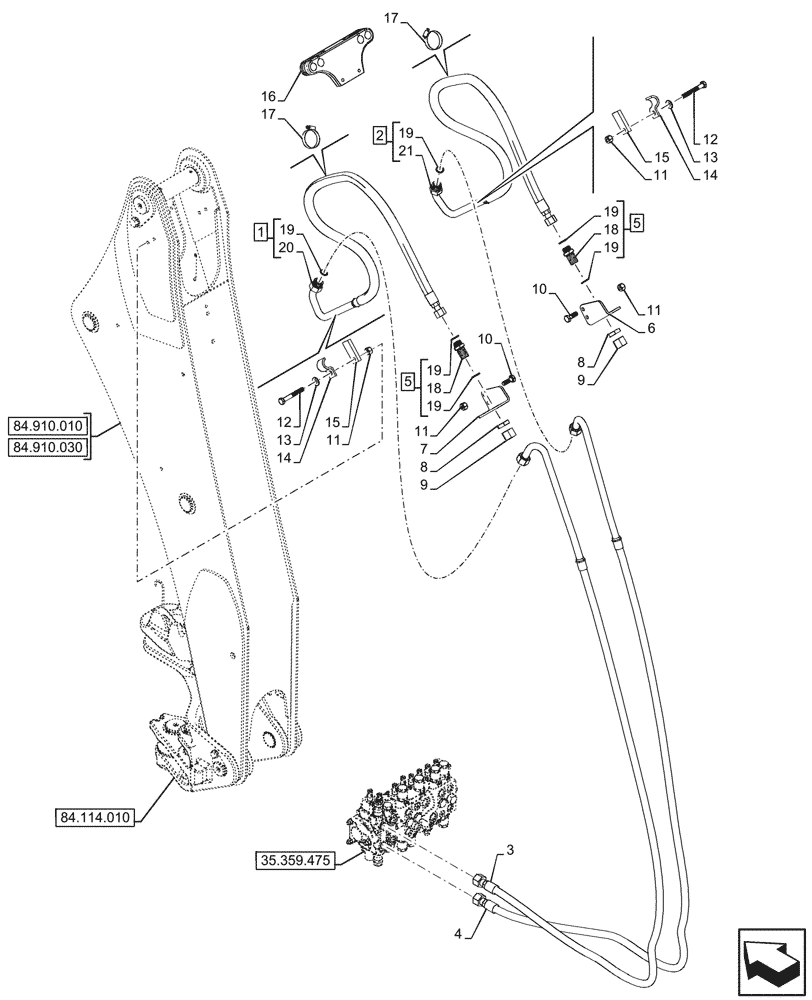

Запчасти Case 580SN WT (35.726.030) - EXTENDABLE DIPPER, AUXILIARY HYDRAULIC, W/ COLD WEATHER (35) - HYDRAULIC SYSTEMS

1

47810087

HYDRAULIC HOSE,19mm ID x 1656mm L

ASSY, Extendable Valve to Auxiliary Port A, Incl 19 (Qty 1), 20

1шт.

2

47810083

HYDRAULIC HOSE,19mm ID x 1656mm L

ASSY, Extendable Valve to Auxiliary Port B, Incl 19 (Qty 1), 21

1шт.

3

47810092

HYDRAULIC HOSE,19mm ID x 2756mm L

Extendable Valve to Auxiliary Port A

1шт.

4

47810089

HYDRAULIC HOSE,19mm ID x 2851mm L

Extendable Valve to Auxiliary Port B

1шт.

5

201-140

HYD CONNECTOR,1-3/16" - 12, Blkhd, ORFS

ASSY, Incl 18, 19 (Qty 4)

2шт.

6

84305054

BRACKET

RH

1шт.

7

84305006

BRACKET

LH

1шт.

8

218-1249

BHD LOCK NUT,1-3/16" - 12

2шт.

9

201-907

CAP,1-3/16" - 12 ORFS

2шт.

10

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

4шт.

11

412141

NUT,M10 x 1.5, Cl 8

6шт.

12

83931335

BOLT,Hex, M10 x 1.5 x 75mm, Cl 8.8

2шт.

13

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.

14

242459A1

SHIN

2шт.

15

84299978

PLATE

2шт.

16

84359766

SUPPORT

Hose Dual Auxiliary Hydraulic

1шт.

17

214-3156

HOSE CLAMP,2-3/4" - 3-5/8", HD Worm

2шт.

18

NSS

NOT SOLD SEPARAT

Connector, Incl in 5

2шт.

19

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

6шт.

20

NSS

NOT SOLD SEPARAT

Tube, Port A, Incl in 1

1шт.

21

NSS

NOT SOLD SEPARAT

Tube, Port B, Incl in 2

1шт.
