Запчасти Case 580SN WT (35.723.160) - LOADER BUCKET, CYLINDER, LINE, 3-SPOOL (35) - HYDRAULIC SYSTEMS

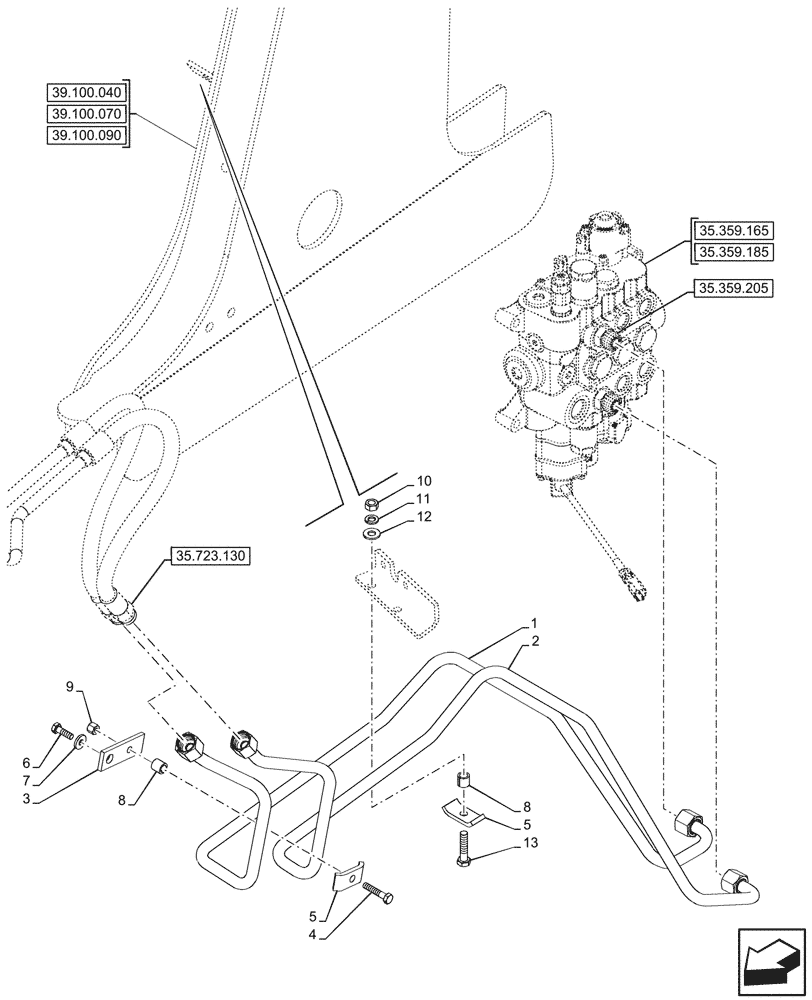

Схема запчастей Case 580SN WT - (35.723.160) - LOADER BUCKET, CYLINDER, LINE, 3-SPOOL (35) - HYDRAULIC SYSTEMS
39.100.040
13
8
5
6
10
12
5
3
4
1
2
8
11
7
9
35.723.130
35.359.165
35.359.185
39.100.090
35.359.205
39.100.070

Артикул

Название

Примечание

Количество

1

84294679

RIGID TUBE

Valve to Cylinder, Tilt Port A

1шт.

2

84294676

RIGID TUBE

Valve to Cylinder, Tilt Port B

1шт.

3

84293019

BRACKET

Loader Tube Clamping

1шт.

4

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

1шт.

5

D138055

CLAMP

2шт.

6

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

7

12645031

WASHER,8.45mm ID x 21mm OD x 3mm Thk

1шт.

8

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

2шт.

9

16104121

NUT,M8 x 1.25, Cl 10

1шт.

10

86500689

NUT,M10 x 1.5, Cl 10

1шт.

11

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

1шт.

12

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

1шт.

13

325829

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

1шт.

Выбрано товаров: 13
