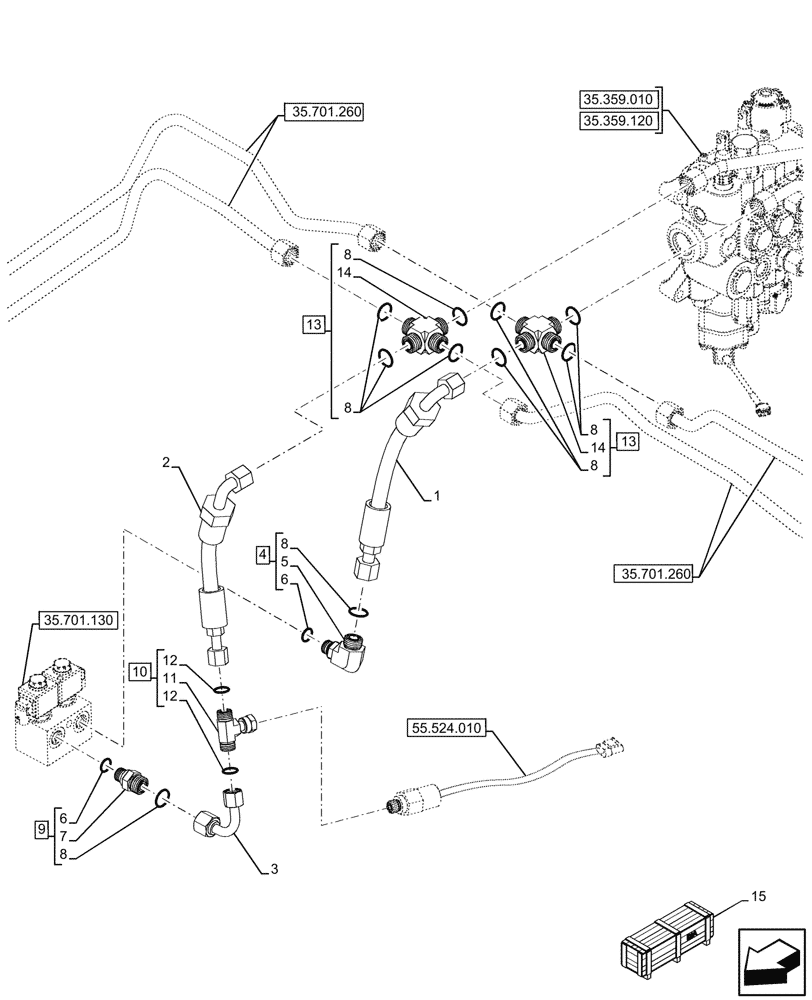

Запчасти Case 580SN WT (35.701.150) - VAR - 423090 - RIDE CONTROL, HYDRAULIC LINE, 4WD (35) - HYDRAULIC SYSTEMS

1

47473494

HYDRAULIC HOSE,12.5mm ID x 341.8mm L, SAE 100R16 Type S

Ride Control P2 Port

1шт.

2

47473503

HYDRAULIC HOSE,12.5mm ID x 290mm L, SAE 100R16 Type S

Ride Control P1 Port

1шт.

3

47473497

HYD TUBE

Ride Control P1 Port

1шт.

4

201-343

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 3/4" - 16 Male ORB

ASSY, Incl 5, 6 (Qty 1), 8 (Qty 1)

1шт.

5

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 4

1шт.

6

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

7

NSS

NOT SOLD SEPARAT

Connector, Incl in 9

1шт.

8

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

10шт.

9

201-115

HYD CONNECTOR,1" - 14 Male ORFS x 3/4" - 16 Male ORB

ASSY, Incl 6 (Qty 1), 7, 8 (Qty 1)

1шт.

10

84480441

BRANCH TEE,13/16"-16 ORFS

ASSY, Incl 11, 12

1шт.

11

NSS

NOT SOLD SEPARAT

Tee, Incl in 10

1шт.

12

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

13

87338053

4 WAY CONNECTION

ASSY, Incl 8 (Qty 8), 14

2шт.

14

NSS

NOT SOLD SEPARAT

Cross, Incl in 13

2шт.

15

47880146

CONSTRUCTION DIA

Auto Ride Control, 4WD, Incl 1 - 13

1шт.

Valid for 580N (Livery), 580SN (Livery), 580SN WT (Livery), 590SN (Livery) Models Only, W/ Powershuttle Transmission

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

15

47880238

CONSTRUCTION DIA

Auto Ride Control, 4WD, Incl 1 - 13

1шт.

Valid for 580N (Livery), 580SN (Livery), 580SN WT (Livery), 590SN (Livery) Models Only, W/ Powershift Transmission

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
