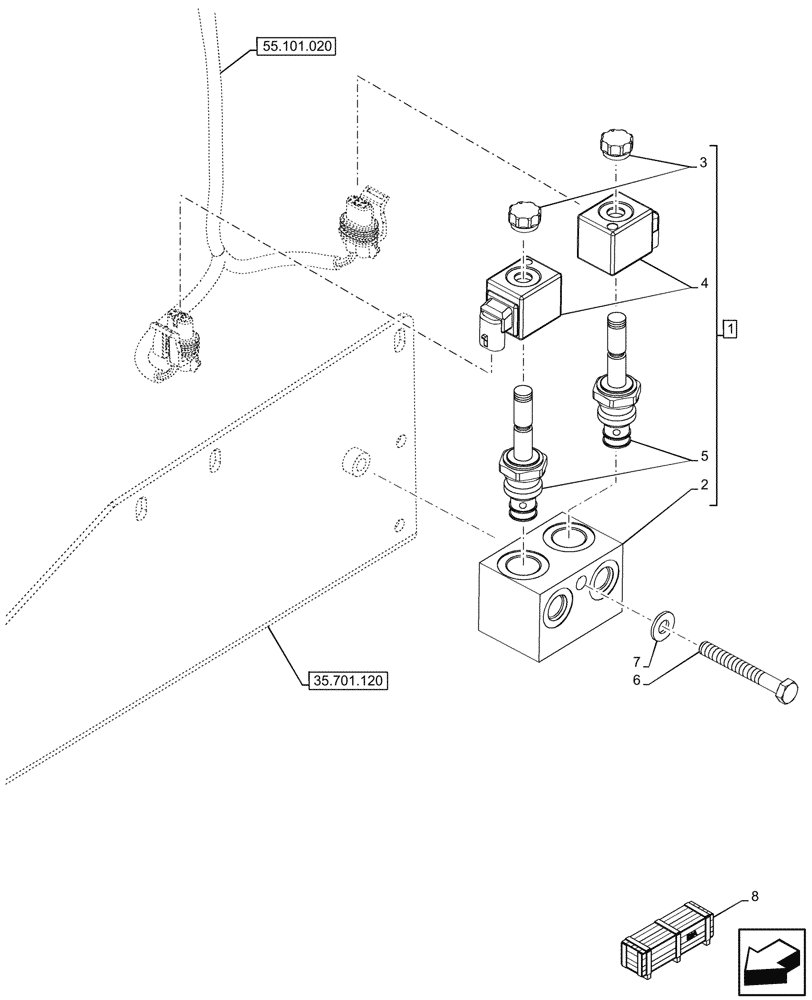

Запчасти Case 580SN WT (35.701.130) - VAR - 423090, 423098 - RIDE CONTROL, VALVE (35) - HYDRAULIC SYSTEMS

1

84348784

SOLENOID VALVE

ASSY, Ride Control, Incl 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

3

9970384

RING NUT

2шт.

4

84478803

COIL

Solenoid with Connector Diode

2шт.

5

84519540

SOLENOID VALVE

2шт.

6

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

1шт.

7

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

1шт.

8

47880018

CONSTRUCTION DIA

Auto Ride Control, Incl 1 - 7

1шт.

Valid for 580N EP (Livery) Model Only, W/ Powershuttle Transmission

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

8

47880067

CONSTRUCTION DIA

Standard Ride Control, 2WD, Incl 1 - 7

1шт.

Valid for 580N EP (Livery) Model only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

8

47880146

CONSTRUCTION DIA

Auto Ride Control, 4WD, Incl 1 - 7

1шт.

Valid for 580N (Livery), 580SN (Livery), 580SN WT (Livery), 590SN (Livery) Models Only, W/ Powershuttle Transmission

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

8

47880215

CONSTRUCTION DIA

Ride Control, 2WD, Incl 1 - 7

1шт.

Valid for 580N (Livery), 580SN (Livery), 590SN (Livery) Models only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

8

47880238

CONSTRUCTION DIA

Auto Ride Control, 4WD, Incl 1 - 7

1шт.

Valid for 580N (Livery), 580SN (Livery), 580SN WT (Livery), 590SN (Livery) Models Only, W/ Powershift Transmission

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
