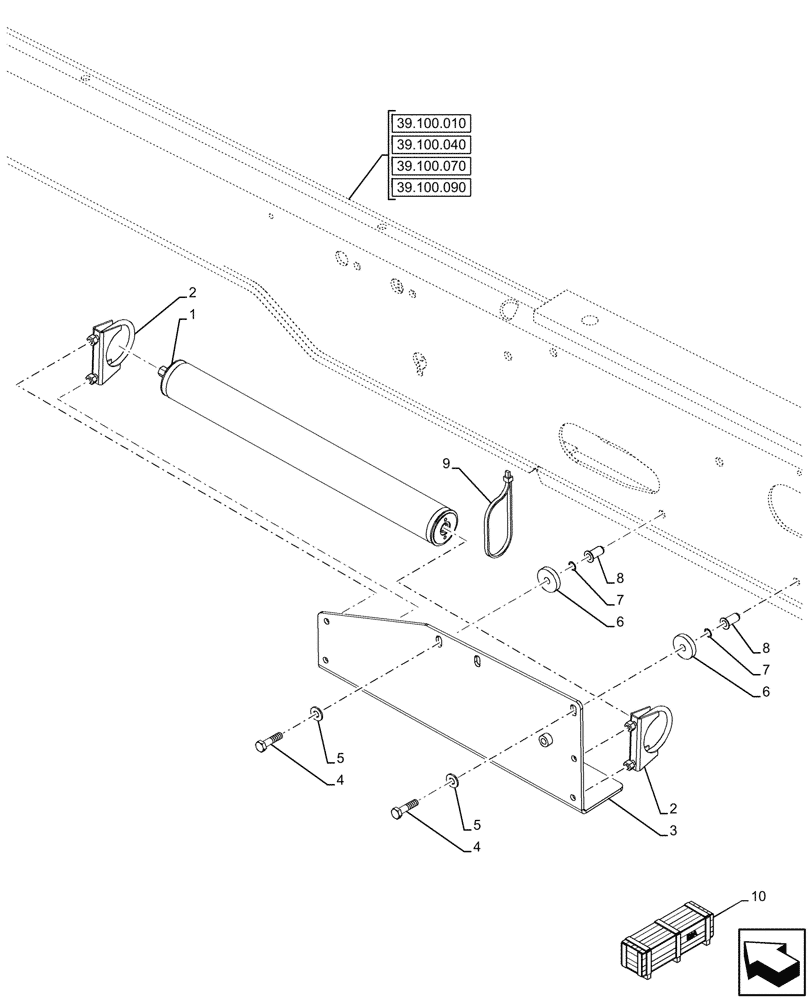

Запчасти Case 580SN WT (35.701.120) - VAR - 423090, 423098 - RIDE CONTROL, ACCUMULATOR (35) - HYDRAULIC SYSTEMS

1

448284A1

ACCUMULATOR,275 Bar

1шт.

2

A13240

CLAMP,2-5/8" ID

2шт.

3

47442464

BRACKET

Black, Ride Control

1шт.

4

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

5

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.

6

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

2шт.

7

87423067

SPACER,11mm ID x 40mm OD x 8mm L

2шт.

8

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

2шт.

9

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.

10

47880018

CONSTRUCTION DIA

Auto Ride Control, Incl 1 - 8

1шт.

Valid for 580N EP (Livery) Model Only, W/ Powershuttle Transmission

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

10

47880067

CONSTRUCTION DIA

Standard Ride Control, 2WD, Incl 1 - 8

1шт.

Valid for 580N EP (Livery) Model only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

10

47880146

CONSTRUCTION DIA

Auto Ride Control, 4WD, Incl 1 - 8

1шт.

Valid for 580N (Livery), 580SN (Livery), 580SN WT (Livery), 590SN (Livery) Models Only, W/ Powershuttle Transmission

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

10

47880215

CONSTRUCTION DIA

Ride Control, 2WD, Incl 1 - 8

1шт.

Valid for 580N (Livery), 580SN (Livery), 590SN (Livery) Models only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

10

47880238

CONSTRUCTION DIA

Auto Ride Control, 4WD, Incl 1 - 8

1шт.

Valid for 580N (Livery), 580SN (Livery), 580SN WT (Livery), 590SN (Livery) Models Only, W/ Powershift Transmission

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
