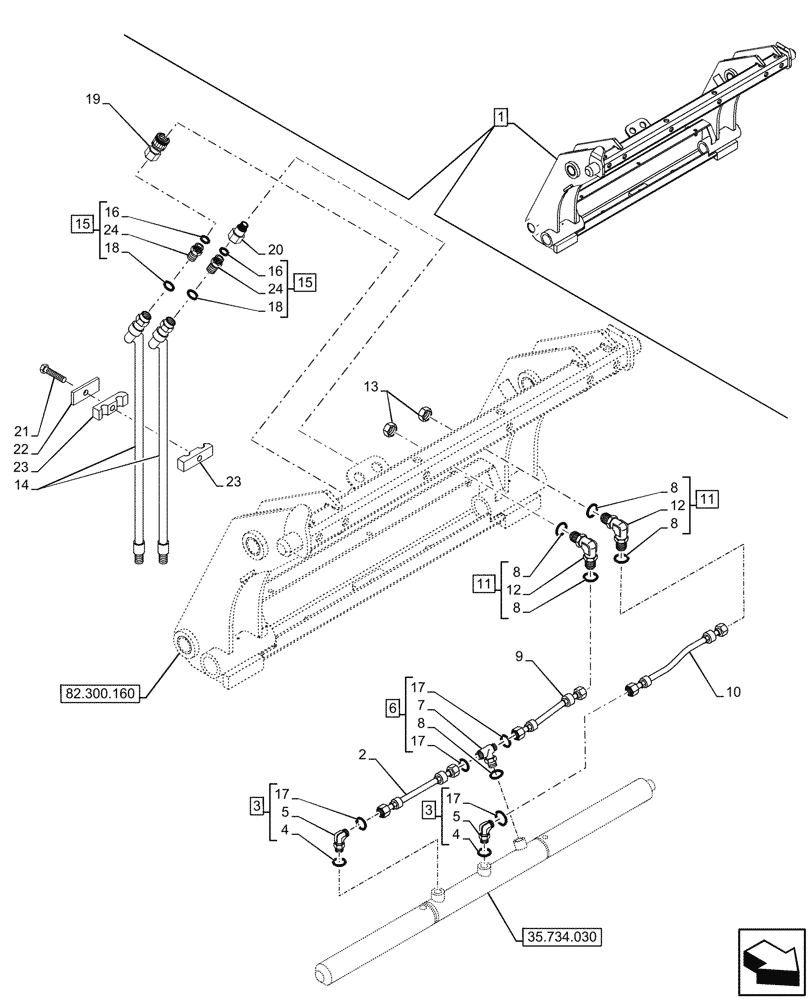

Запчасти Case 580SN WT (35.525.200) - VAR - 423049 - QUICK COUPLER, COMPONENTS, CYLINDER, LINES (35) - HYDRAULIC SYSTEMS

1

84265982

COUPLING

ASSY, Loader with Auxiliary Hydraulic, Incl 2 - 24

1шт.

See also Coupling Components in Figures 35.734.030, 82.300.160, 90.108.029

1шт.

2

84519649

HYDRAULIC HOSE,6.3mm ID x 241mm L

Tee to RH Cylinder Rod End

1шт.

3

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

ASSY, Incl 4, 5, 17 (Qty 2)

2шт.

4

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

5

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 3

2шт.

6

84368922

BRANCH TEE,11/16"-16 ORFS x 9/16" ORB

ASSY, Incl 7, 8 (Qty 1), 17 (Qty 2)

1шт.

7

NSS

NOT SOLD SEPARAT

Tee, Incl in 6

1шт.

8

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

5шт.

9

84518946

HYDRAULIC HOSE,6.3mm ID x 244mm L

Bulkhead to Tee

1шт.

10

84518948

HYDRAULIC HOSE,6.3mm ID x 353mm L

Bulkhead to Cylinder

1шт.

11

84326219

90 ELBOW,9/16"-18 ORFS

ASSY, Incl 8 (Qty 4), 12

2шт.

12

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 11

2шт.

13

87310

NUT,Jam, 9/16"-18, G2

2шт.

14

84518949

HYDRAULIC HOSE,16mm ID x 1016mm L

2шт.

15

84523391

FITTING,3/8" ID, 3/8" OD

ASSY, Incl 16, 18, 24

2шт.

16

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

2шт.

17

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

18

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

19

86537745

COUPLING, QUICK, FEM,27mm ID

1шт.

20

86537746

QUICK MALE COUPLING,27mm OD, 1.062 - 12" OD

1шт.

21

87626

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

1шт.

22

87493782

PLATE

1шт.

23

87483067

CLAMP

1шт.

24

NSS

NOT SOLD SEPARAT

Connector, Incl in 15

2шт.
