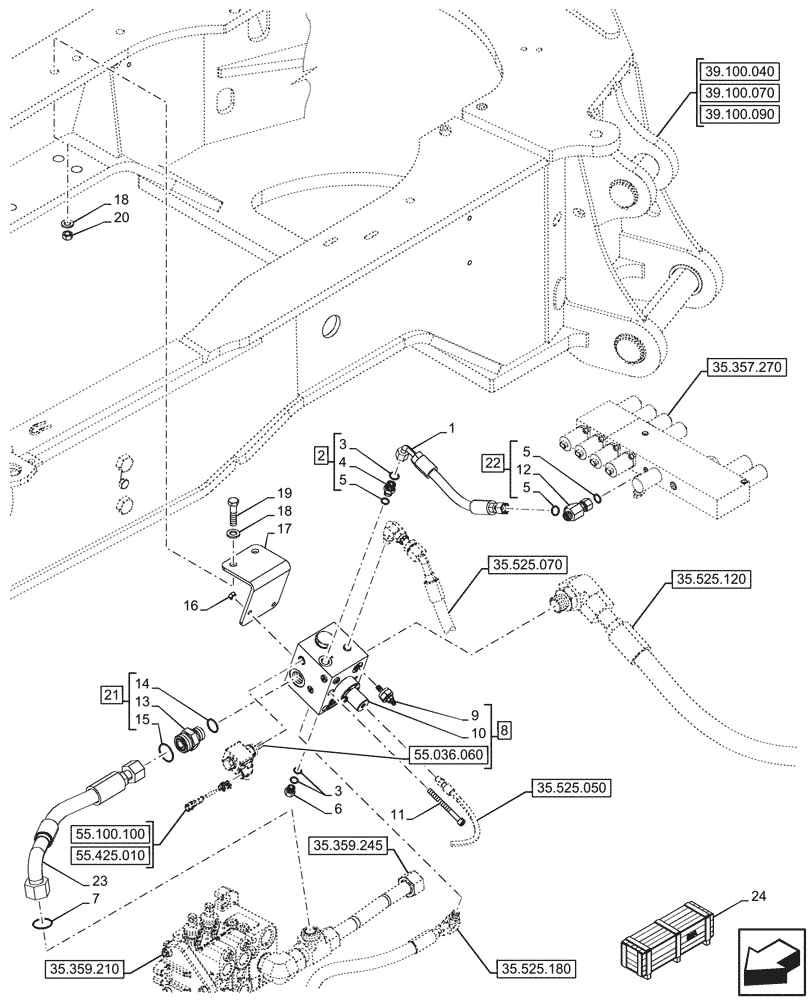

Запчасти Case 580SN WT (35.525.170) - VAR - 747662 - AUXILIARY HYDRAULIC, CONTROL VALVE, LINE (35) - HYDRAULIC SYSTEMS

1

84259315

HOSE ASSY.,10mm ID x 288mm L

Backhoe Aux Return to Tank

1шт.

2

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

ASSY, Incl 3 (Qty 1), 4, 5 (Qty 1)

1шт.

3

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3шт.

4

NSS

NOT SOLD SEPARAT

Connector, Incl in 2

1шт.

5

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

6

76349

PLUG,9/16" - 18 ORB

ASSY, Incl 3 (Qty 2)

1шт.

7

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

8

84247110

VALVE

ASSY, Closed Center, UNI-AUX, Incl 9, 10

1шт.

See also Valve Components in Figure 55.036.060

1шт.

9

9970178

VALVE PRESSURE RELIE

1шт.

10

NSS

NOT SOLD SEPARAT

Body Valve, Incl in 8

1шт.

11

1960667

HEX SOC SCREW,M8 x 90mm, Cl 8.8

2шт.

12

NSS

NOT SOLD SEPARAT

Tee, Incl in 22

1шт.

13

NSS

NOT SOLD SEPARAT

Connector, Incl in 21

1шт.

14

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

15

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

16

43362

NUT,M8 x 1.25, Cl 10

2шт.

17

84257782

BRACKET

Backhoe Auxiliary Valve Mounting

1шт.

18

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

4шт.

19

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

2шт.

20

337475

NUT,M12, Cl 10

2шт.

21

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

ASSY, Incl 13 - 15

1шт.

22

84989848

TEE,11/16" - 16 ORFS x 11/16" - 16 ORFS x 11/16" - 16 JIC

ASSY, Incl 5 (Qty 2), 12

1шт.

23

84275042

HOSE ASSY.,19mm ID x 411mm L

Uni Valve to Loader Valve 3 Spool

1шт.

24

47357827

CONSTRUCTION DIA

Uni-Directional, Standard Dipper, Pilot Control, Incl 1 - 23

1шт.

Valid for 590SN Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

24

47358915

CONSTRUCTION DIA

Uni-Directional, Standard Dipper, Pilot Control, Incl 1 - 23

1шт.

Valid for 580SN, 580SN WT Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

24

47359725

CONSTRUCTION DIA

Uni-Directional, Extendable Dipper, Pilot Control, Incl 1 - 23

1шт.

Valid for 580SN, 580SN WT Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

24

47359953

CONSTRUCTION DIA

Uni-Directional, Extendable Dipper, Pilot Control, Incl 1 - 23

1шт.

Valid for 590SN Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
