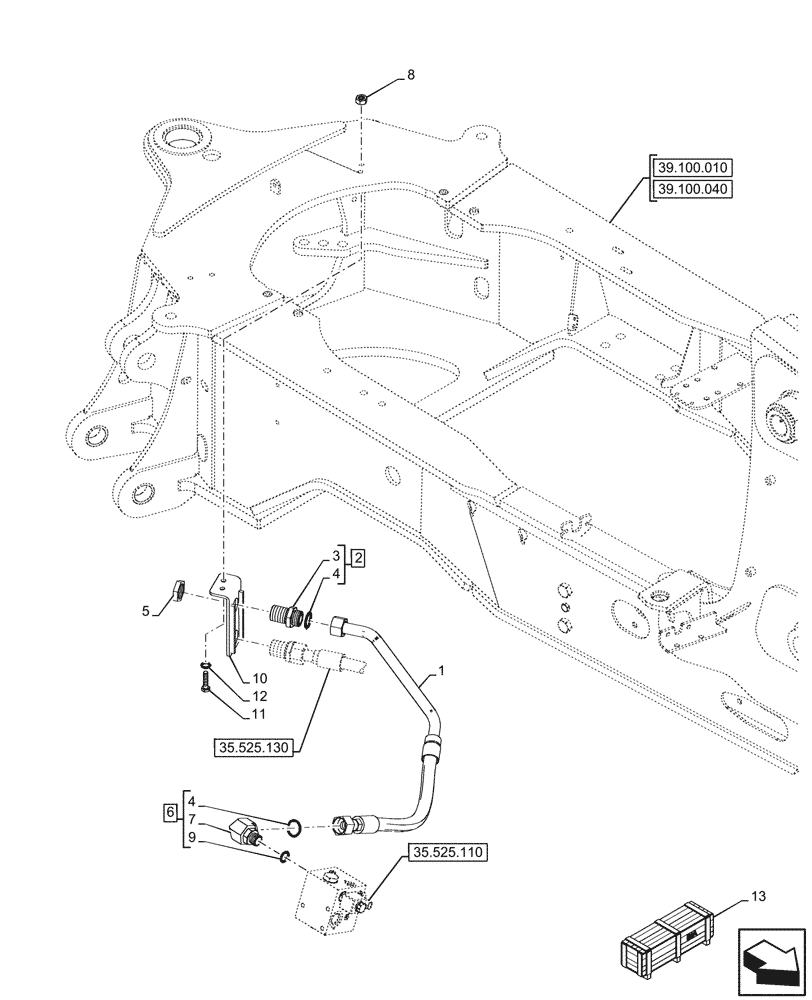

Запчасти Case 580SN WT (35.525.120) - VAR - 747662 - AUXILIARY HYDRAULIC, LINE (35) - HYDRAULIC SYSTEMS

1

84407248

HYD TUBE

Uni - Aux Pilot

1шт.

2

86639060

UNION,1-7/16"-12 ORFS, Bulkhead

ASSY, Incl 3, 4 (Qty 1)

1шт.

3

NSS

NOT SOLD SEPARAT

Union, Incl in 2

1шт.

4

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

5

86639084

BHD LOCK NUT,1-7/16"-12, ORFS, Bulkhead

1шт.

6

9846956

90 ELBOW,90 Degree, 1-7/16"-12 x 1-1/16"-12, Adj, ORFS

ASSY, Incl 4 (Qty 1), 7, 9

1шт.

7

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 6

1шт.

8

86500689

NUT,M10 x 1.5, Cl 10

2шт.

9

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

10

84407250

BRACKET, SUPPORTING

Uni-Auxiliary Mounting

1шт.

11

86508618

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

2шт.

12

3416158

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

2шт.

13

47357827

CONSTRUCTION DIA

Uni-Directional, Standard Dipper, Pilot Control, Incl 1 - 12

1шт.

Valid for 590SN Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

13

47358915

CONSTRUCTION DIA

Uni-Directional, Standard Dipper, Pilot Control, Incl 1 - 12

1шт.

Valid for 580SN, 580SN WT Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

13

47359725

CONSTRUCTION DIA

Uni-Directional, Extendable Dipper, Pilot Control, Incl 1 - 12

1шт.

Valid for 580SN, 580SN WT Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

13

47359953

CONSTRUCTION DIA

Uni-Directional, Extendable Dipper, Pilot Control, Incl 1 - 12

1шт.

Valid for 590SN Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

13

84544872

CONSTRUCTION DIA

Uni-Directional, Incl 1 - 12

1шт.

Valid for 580N EP (Livery), 580N (Livery) Models Only, W/ Standard Dipper and Pilot Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

13

84544875

CONSTRUCTION DIA

Uni-Directional, Incl 1 - 12

1шт.

Valid for 580N EP (Livery), 580N (Livery) Models Only, W/ Extendable Dipper and Pilot Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
