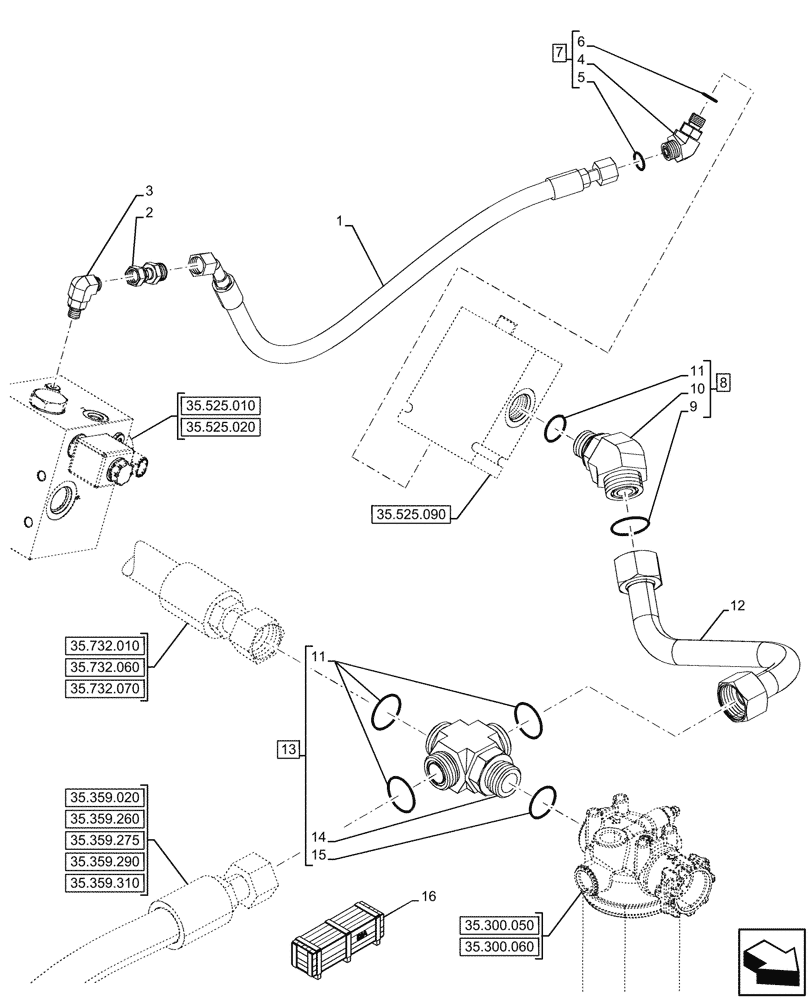

Запчасти Case 580SN WT (35.525.070) - VAR - 423083 - AUXILIARY HYDRAULIC, LINE (35) - HYDRAULIC SYSTEMS

1

84258749

HOSE ASSY.,10mm ID x 645mm L

Uni-Aux Valve to Check Valve

1шт.

2

84395081

ADAPTER

1шт.

3

84394685

ELBOW,9/16"-18 UNF-2A x 1/8"-28 GAS

1шт.

4

NSS

NOT SOLD SEPARAT

45° Elbow, Incl in 7

1шт.

5

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

6

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

7

201-315

ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

ASSY, Incl 4 - 6

1шт.

8

87302733

HYD CONNECTOR

ASSY, Incl 9, 10, 11 (Qty 1)

1шт.

9

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

10

NSS

NOT SOLD SEPARAT

45° Elbow, Incl in 8

1шт.

11

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

4шт.

12

84354910

HYD TUBE

Dual Aux Check Valve to Filter

1шт.

13

84259313

FITTING,1"7/16 - 12 ORFS x 1"5/16 - 12 ORB

ASSY, Incl 11 (Qty 3), 14, 15

1шт.

14

NSS

NOT SOLD SEPARAT

Cross, Incl in 13

1шт.

15

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

16

47501545

CONSTRUCTION DIA

No Auxiliary to Combo, Standard Dipper, Pilot Control, Incl 1 - 15

1шт.

Valid for 580N EP, 580N Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

16

47501547

CONSTRUCTION DIA

No Auxiliary to Combo, Incl 1 - 15

1шт.

Valid for 580N EP (Livery), 580N (Livery) Models Only, W/ Extendable Dipper and Pilot Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

16

47661834

CONSTRUCTION DIA

No Auxiliary to Combo, Incl 1 - 15

1шт.

Valid for 580N EP (Livery), 580N (Livery) Models Only, W/ Standard Dipper and Pilot Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

16

47662029

CONSTRUCTION DIA

Uni-Auxiliary to Combo, Incl 1 - 15

1шт.

Valid for 580N EP (Livery), 580N (Livery) Models Only, W/ Extendable Dipper and Pilot Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

16

47674139

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Incl 1 - 15

1шт.

Valid for 580N EP (Livery) Model Only, W/ Mechanical Control and Extendable Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

16

47674141

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Incl 1 - 15

1шт.

Valid for 580N EP (Livery) Model Only, W/ Mechanical Control and Standard Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

16

47945923

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Incl 1 - 15

1шт.

Valid for 580N (Livery), 580SN (Livery), 580SN WT (Livery) Models Only, W/ Mechanical Control and Standard Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

16

47945925

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Incl 1 - 15

1шт.

Valid for 580N (Livery), 580SN (Livery), 580SN WT (Livery) Models Only, W/ Mechanical Control and Extendable Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

16

47945938

CONSTRUCTION DIA

Combo Auxiliary, Incl 1 - 15

1шт.

Valid for All Models, W/ Mechanical Control and Standard Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

16

47946549

CONSTRUCTION DIA

Uni to Combo Auxiliary, Incl 1 - 15

1шт.

Valid for All Models, W/ Mechanical Control and Extendable Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

16

47945926

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Incl 1 - 15

1шт.

Valid for 590SN (Livery) Model Only, W/ Mechanical Control and Standard Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

16

47945927

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Incl 1 - 15

1шт.

Valid for 590SN (Livery) Model Only, W/ Mechanical Control and Extendable Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
