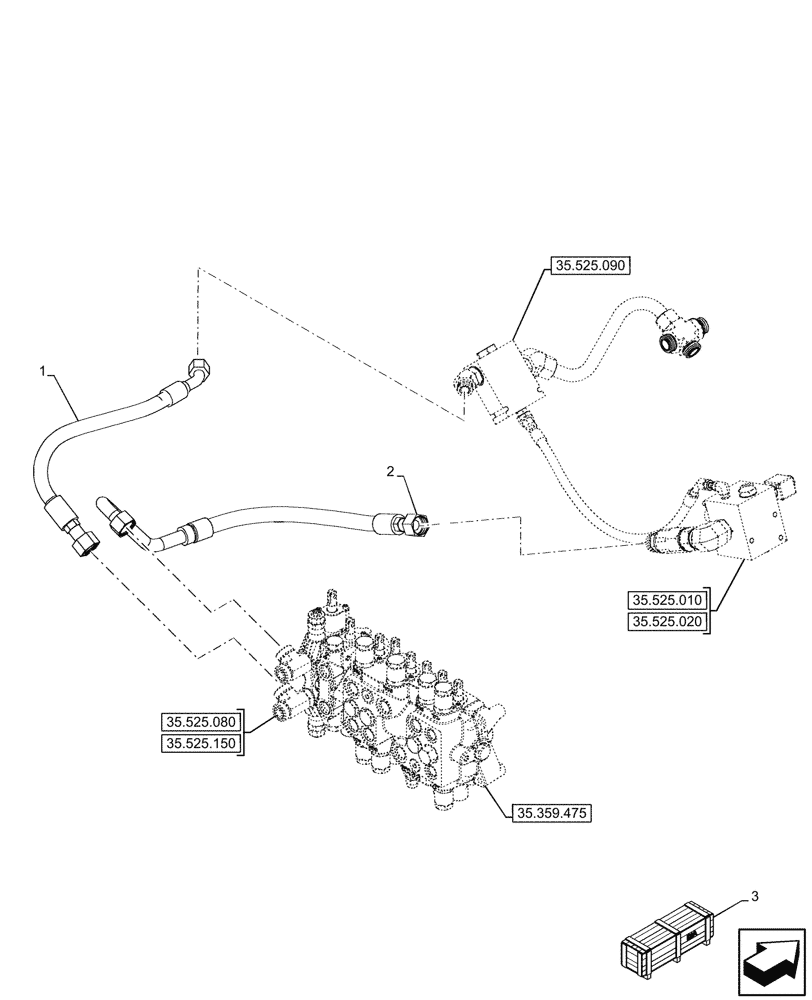

Запчасти Case 580SN WT (35.359.665) - 8-SPOOL, CONTROL VALVE LINE (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
1
84292795
HOSE ASSY.,19mm ID x 698mm L
8 Spool Aux Valve to Valve Center Uni-Aux
1шт.
2
84292027
HYD TUBE
ASSY, 8 Spool Aux Valve to Check Valve
1шт.
3
47501542
CONSTRUCTION DIA
No Auxiliary to Combo, Extendable Dipper, Pilot Control, Incl 1, 2
1шт.
Valid for 590SN Model Only
1шт.
To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown
1шт.
3
47501547
CONSTRUCTION DIA
No Auxiliary to Combo, Incl 1, 2
1шт.
Valid for 580N EP (Livery), 580N (Livery) Models Only, W/ Extendable Dipper and Pilot Control
1шт.
To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown
1шт.
3
47662021
CONSTRUCTION DIA
No Auxiliary to Combo, Incl 1, 2
1шт.
Valid for 580SN (Livery), 580SN WT (Livery) Models Only, W/ Extendable Dipper and Pilot Control
1шт.
To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown
1шт.
3
47662029
CONSTRUCTION DIA
Uni-Auxiliary to Combo, Incl 1, 2
1шт.
Valid for 580N EP (Livery), 580N (Livery) Models Only, W/ Extendable Dipper and Pilot Control
1шт.
To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown
1шт.
3
47662033
CONSTRUCTION DIA
Uni-Auxiliary to Combo Auxiliary, Incl 1, 2
1шт.
Valid for 580SN (Livery), 580SN WT (Livery), 590SN (Livery) Models Only, W/ Extendable Dipper and Pilot Control
1шт.
To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown
1шт.
3
47674139
CONSTRUCTION DIA
No Auxiliary to Combo Auxiliary, Incl 1, 2
1шт.
Valid for 580N EP (Livery) Model Only, W/ Mechanical Control and Extendable Dipper
1шт.
To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown
1шт.
3
47945925
CONSTRUCTION DIA
No Auxiliary to Combo Auxiliary, Incl 1, 2
1шт.
Valid for 580N (Livery), 580SN (Livery), 580SN WT (Livery) Models Only, W/ Mechanical Control and Extendable Dipper
1шт.
To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown
1шт.
3
47946549
CONSTRUCTION DIA
Uni to Combo Auxiliary, Incl 1, 2
1шт.
Valid for All Models, W/ Mechanical Control and Extendable Dipper
1шт.
To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown
1шт.
3
47945927
CONSTRUCTION DIA
No Auxiliary to Combo Auxiliary, Incl 1, 2
1шт.
Valid for 590SN (Livery) Model Only, W/ Mechanical Control and Extendable Dipper
1шт.
To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown
1шт.
Выбрано товаров: 29
