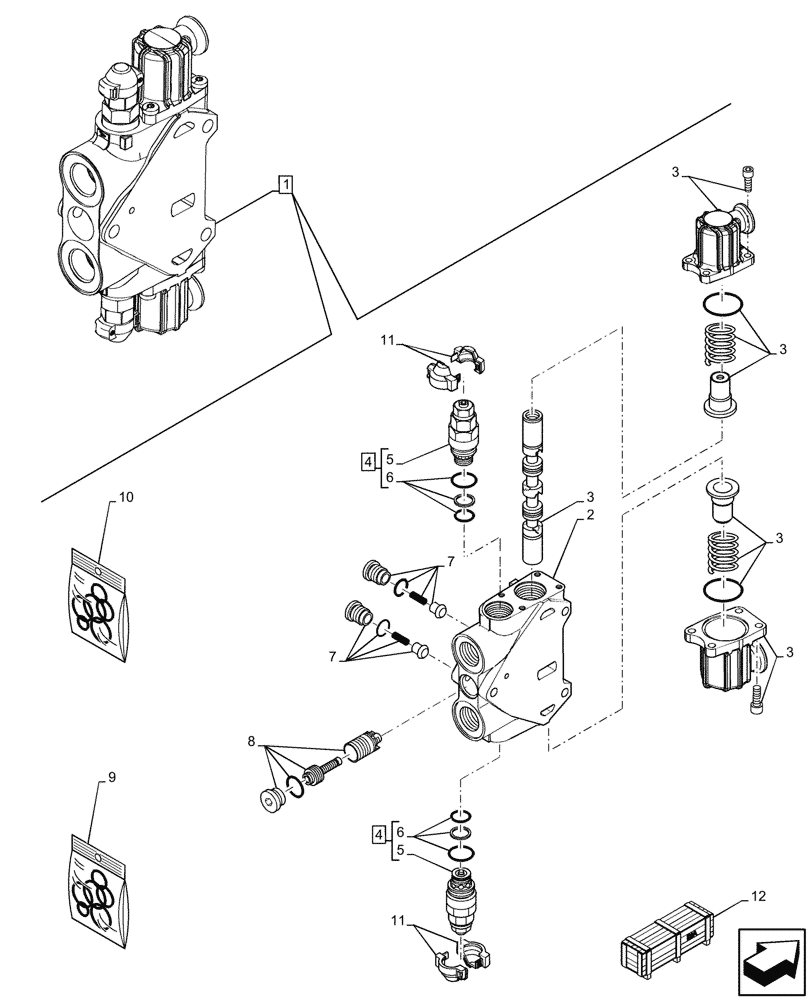

Запчасти Case 580SN WT (35.359.630) - 7-SPOOL, 8-SPOOL, BACKHOE CONTROL VALVE, HYD VALVE SECTION, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

84278691

HYD VALVE SECTION

ASSY, BI-DIR Pilot Control, Incl 2 - 11

1шт.

2

NSS

NOT SOLD SEPARAT

Valve, Incl in 1

1шт.

3

85826344

KIT,Operation

1шт.

4

85812115

VALVE PRESSURE RELIE

ASSY, Maximum 220 bar, Incl 5, 6

2шт.

5

NSS

NOT SOLD SEPARAT

Valve, Incl in 4

2шт.

6

85811933

SEAL KIT,Secondary Valve

2шт.

7

85811938

KIT,Check Valve

2шт.

8

85819378

KIT

Compensator

1шт.

9

85824281

SEAL KIT,Control Valve Section, Complete

Backhoe Control Valve, Swing & Outlet Sections

1шт.

10

85819148

SEAL KIT,Between Control Valve Sections

1шт.

11

NSS

NOT SOLD SEPARAT

Protection Valve, Incl in 1

2шт.

12

47670289

SERVICE KIT

Dual Auxiliary, Incl 1 - 10

1шт.

Valid for All Models, W/ Standard Dipper and Pilot Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

12

47670543

SERVICE KIT

Dual Auxiliary, Service, Incl 1 - 10

1шт.

Valid for All Models, W/ Extendable Dipper and Pilot Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
