Запчасти Case 580SN WT (35.359.450) - LOADER, VALVE, HAMMER, LINE, W/ 2 SPOOL (35) - HYDRAULIC SYSTEMS

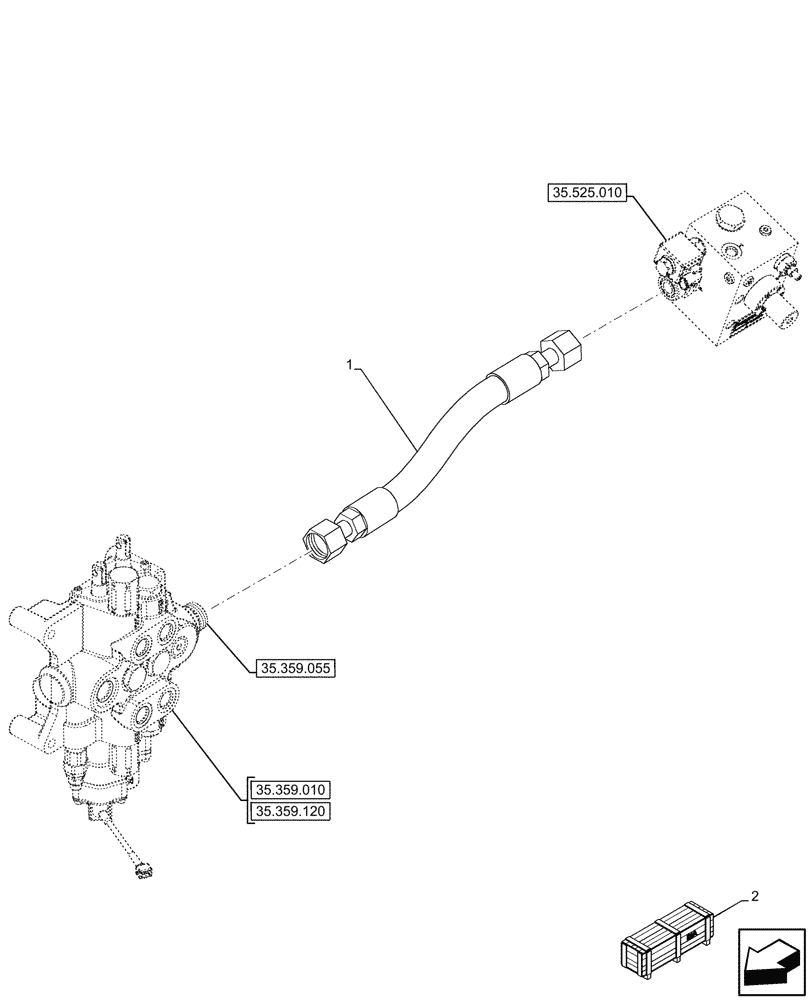

Схема запчастей Case 580SN WT - (35.359.450) - LOADER, VALVE, HAMMER, LINE, W/ 2 SPOOL (35) - HYDRAULIC SYSTEMS
35.359.055
2
1
35.359.010
35.525.010
35.359.120

Артикул

Название

Примечание

Количество

1

84283267

HOSE ASSY.,19mm ID x 480mm L, SAE 100R16 Type S

Loader Valve to Hammer Valve

1шт.

2

47945923

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Incl 1

1шт.

Valid for 580N (Livery), 580SN (Livery), 580SN WT (Livery) Models Only, W/ Mechanical Control and Standard Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47945925

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Incl 1

1шт.

Valid for 580N (Livery), 580SN (Livery), 580SN WT (Livery) Models Only, W/ Mechanical Control and Extendable Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

84546986

CONSTRUCTION DIA

Uni-Directional, Incl 1

1шт.

Valid for 580N (Livery), 580SN (Livery), 580SN WT (Livery) Models Only, W/ Mechanical Control and Standard Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

84546989

CONSTRUCTION DIA

Uni-Directional, Incl 1

1шт.

Valid for 580N (Livery), 580SN (Livery), 580SN WT (Livery) Models Only, W/ Mechanical Control and Extendable Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

84546990

CONSTRUCTION DIA

Uni-Directional, Incl 1

1шт.

Valid for 590SN (Livery) Model Only, W/ Mechanical Control and Standard Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

84546992

CONSTRUCTION DIA

Uni-Directional, Incl 1

1шт.

Valid for 590SN (Livery) Model Only, W/ Mechanical Control and Extendable Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47945926

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Incl 1

1шт.

Valid for 590SN (Livery) Model Only, W/ Mechanical Control and Standard Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47945927

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Incl 1

1шт.

Valid for 590SN (Livery) Model Only, W/ Mechanical Control and Extendable Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 25
