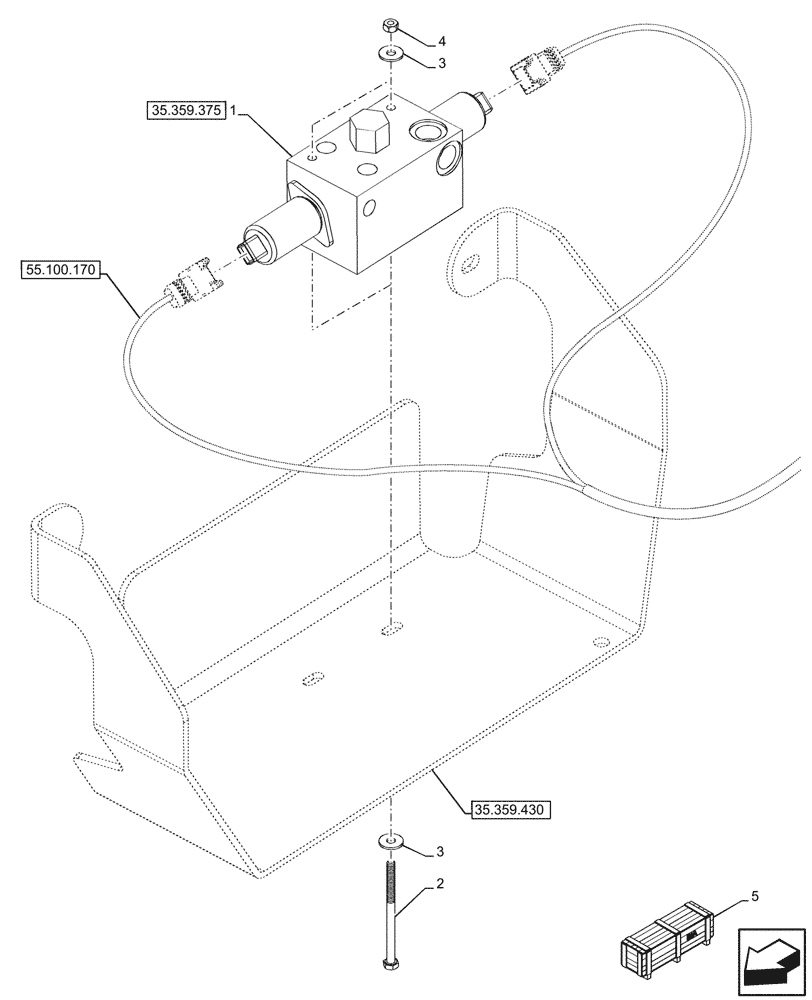

Запчасти Case 580SN WT (35.359.370) - AUXILIARY CONTROL VALVE (35) - HYDRAULIC SYSTEMS

1

47765053

CONTROL VALVE

Clam Bucket

1шт.

2

814-6090

BOLT,Hex, M6 x 1 x 90mm, Cl 8.8

2шт.

3

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

4шт.

4

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

5

47661818

CONSTRUCTION DIA

3 Spool Valve, Incl 1 - 4

1шт.

Valid for 580SN (Livery), 580SN WT (Livery), 590SN (Livery) Models Only, W/ Standard Transmission and Pilot Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

5

47788201

CONSTRUCTION DIA

Loader Valve 3 Spool, Incl 1 - 4

1шт.

Valid for 580SN (Livery), 580SN WT (Livery), 590SN (Livery) Models Only, W/ Powershift Transmission

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

5

47955704

CONSTRUCTION DIA

Loader Valve 3 Spool, Incl 1 - 4

1шт.

Valid for 580N (Livery) Model Only, W/ Pilot Control and Powershift Transmission

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

5

47955708

CONSTRUCTION DIA

Loader Valve 3 Spool, Incl 1 - 4

1шт.

Valid for 580N (Livery) Model Only, W/ Mechanical Control and Powershuttle Transmission

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

5

47955719

CONSTRUCTION DIA

Loader Valve 3 Spool, Incl 1 - 4

1шт.

Valid for 580N (Livery) Model Only, W/ Mechanical Control and Powershift Transmission

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

5

47955728

CONSTRUCTION DIA

Loader Valve 3 Spool, Incl 1 - 4

1шт.

Valid for 580SN (Livery), 580SN WT (Livery), 590SN (Livery) Models Only, W/ Mechanical Control and Standard Transmission

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

5

47955736

CONSTRUCTION DIA

Loader Valve 3 Spool, Incl 1 - 4

1шт.

Valid for 580SN (Livery), 580SN WT (Livery), 590SN (Livery) Models Only, W/ Mechanical Control and Powershift Transmission

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

5

47955743

CONSTRUCTION DIA

Loader Valve 3 Spool, Incl 1 - 4

1шт.

Valid for 580N (Livery) Model Only, W/ Pilot Control and Powershuttle Transmission

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
