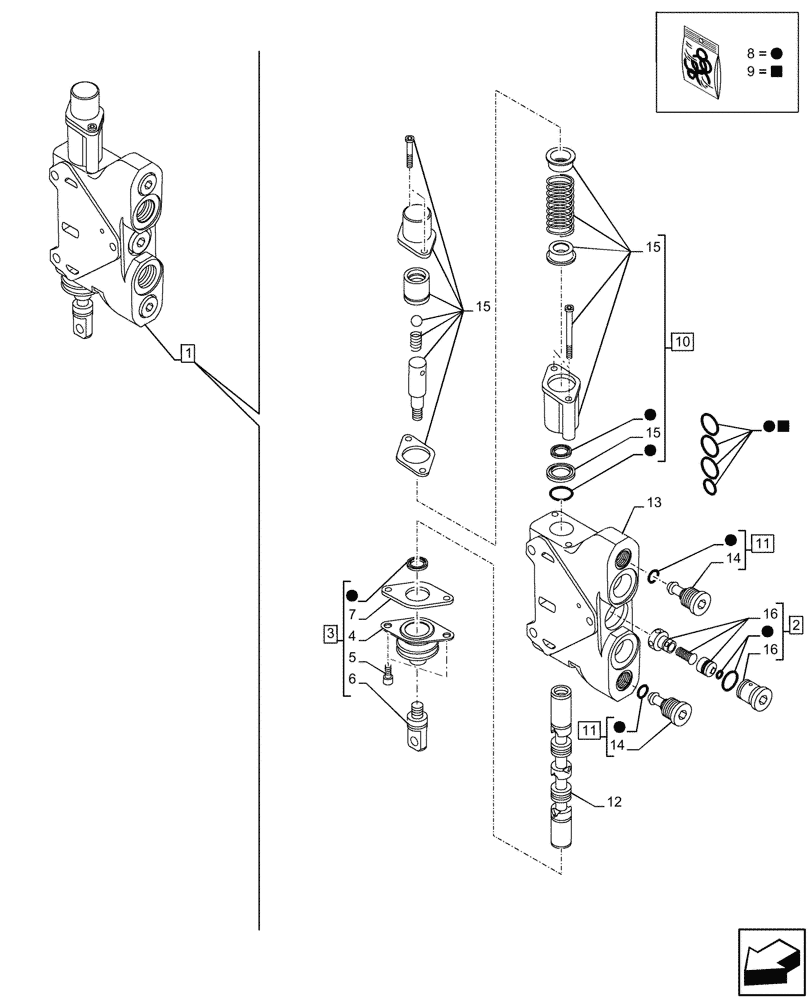

Запчасти Case 580SN WT (35.359.140) - LOADER, CONTROL VALVE, PILOT CONTROLS, LOADER ARM, VALVE SECTION (35) - HYDRAULIC SYSTEMS

1

84295097

HYD VALVE SECTION

ASSY, Loader Lift, Incl 2 - 16

1шт.

2

47422242

COMPENSATOR

ASSY, Incl 16 & O-Rings

1шт.

3

85824278

KIT

ASSY, Operating, Incl 4 - 7 & Seal

1шт.

4

85820130

BOOT

1шт.

5

NSS

NOT SOLD SEPARAT

Screw, Incl in 3

1шт.

6

NSS

NOT SOLD SEPARAT

Spool, Incl in 3

1шт.

7

NSS

NOT SOLD SEPARAT

Cover, Incl in 3

1шт.

8

87617657

O-RING KIT

Control Valve Section

1шт.

9

85825473

SEAL KIT

Loader Valve Section

1шт.

10

87558870

KIT

ASSY, Operation, Incl 15 & O-Ring, Seal

1шт.

11

84354124

HYD VALVE SECTION

ASSY, Anti Cavitation, Incl 14 & O-Ring

2шт.

12

NSS

NOT SOLD SEPARAT

Spool , Incl in 1

1шт.

13

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

14

NSS

NOT SOLD SEPARAT

Valve, Incl in 11

2шт.

15

NSS

NOT SOLD SEPARAT

Kit, Operation, Incl in 10

1шт.

16

NSS

NOT SOLD SEPARAT

Compensator, Incl in 2

1шт.
