Запчасти Case 580SN WT (35.359.135) - LOADER, CONTROL VALVE, PILOT CONTROLS, 2-SPOOL, COMPONENTS (35) - HYDRAULIC SYSTEMS

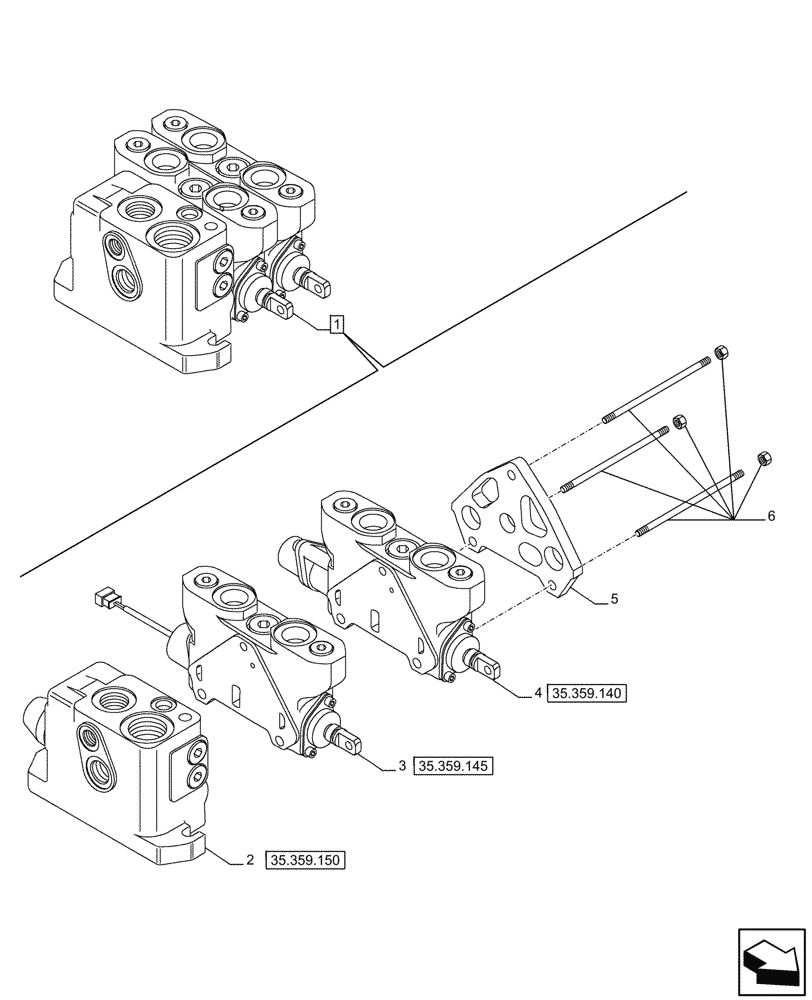

Схема запчастей Case 580SN WT - (35.359.135) - LOADER, CONTROL VALVE, PILOT CONTROLS, 2-SPOOL, COMPONENTS (35) - HYDRAULIC SYSTEMS
35.359.145
4
2
3
6
5
1
35.359.150
35.359.140

Артикул

Название

Примечание

Количество

1

84219975

VALVE

ASSY, Loader 2-Spool, Incl 2 - 6

1шт.

2

87751123

HYD VALVE SECTION

ASSY, Inlet

1шт.

3

84295100

HYD VALVE SECTION

ASSY, Loader Bucket

1шт.

4

84295097

HYD VALVE SECTION

ASSY, Loader Lift

1шт.

5

87330847

OUTLET

1шт.

6

85825475

THREADED TIE-ROD,M10 x 145mm L

1шт.

Выбрано товаров: 6
