Запчасти Case 580SN WT (35.359.050) - LOADER, CONTROL VALVE, MECHANICAL, 3-SPOOL, CYLINDER, LINES (35) - HYDRAULIC SYSTEMS

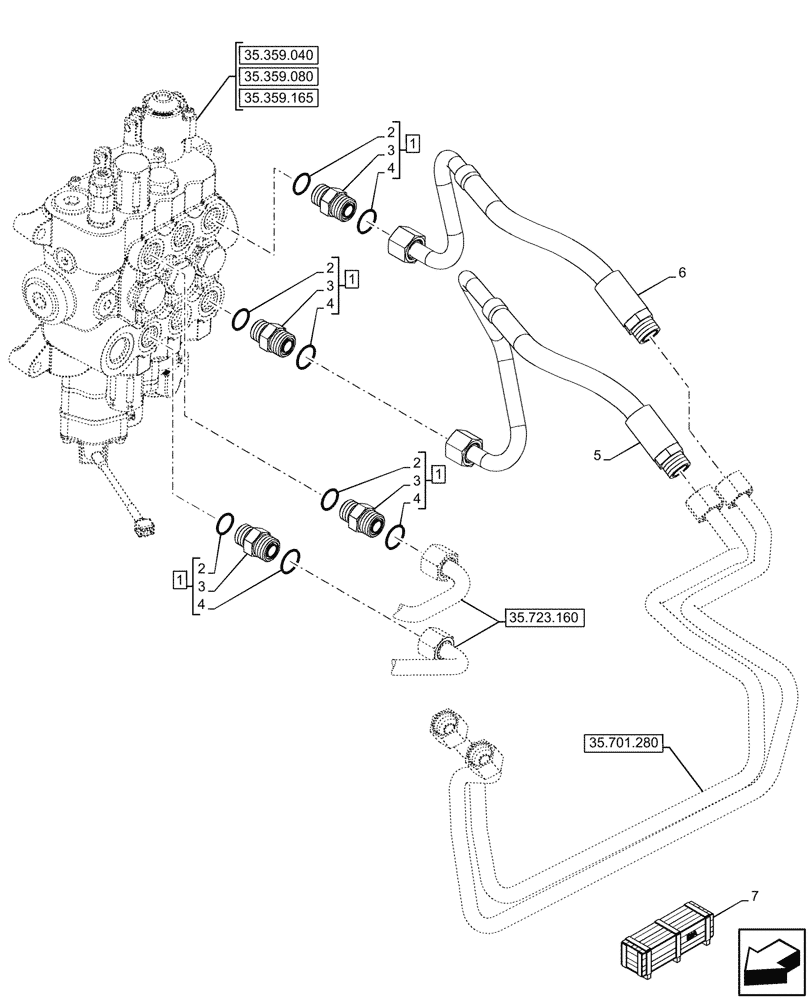

Схема запчастей Case 580SN WT - (35.359.050) - LOADER, CONTROL VALVE, MECHANICAL, 3-SPOOL, CYLINDER, LINES (35) - HYDRAULIC SYSTEMS
35.359.040
3
4
2
5
3
2
1
1
2
2
3
7
1
1
4
4
6
3
4
35.723.160
35.359.080
35.359.165
35.701.280

№

Артикул

Название

Примечание

Количество

1

9621483

HYD CONNECTOR,1"-14 ORFS x 7/8"-14 ORB

ASSY, Incl 2 - 4

4шт.

2

128359

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

4шт.

3

NSS

NOT SOLD SEPARAT

Connector, Incl in 1

4шт.

4

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

4шт.

5

84293158

TUBE

4N1 Port B to Auxiliary Line

1шт.

6

84293160

TUBE

4N1 Port A to Auxiliary Line

1шт.

7

47955704

CONSTRUCTION DIA

Loader Valve 3 Spool, Incl 1 - 6

1шт.

Valid for 580N (Livery) Model Only, W/ Pilot Control and Powershift Transmission

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

7

47955708

CONSTRUCTION DIA

Loader Valve 3 Spool, Incl 1 - 6

1шт.

Valid for 580N (Livery) Model Only, W/ Mechanical Control and Powershuttle Transmission

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

7

47955719

CONSTRUCTION DIA

Loader Valve 3 Spool, Incl 1 - 6

1шт.

Valid for 580N (Livery) Model Only, W/ Mechanical Control and Powershift Transmission

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

7

47955728

CONSTRUCTION DIA

Loader Valve 3 Spool, Incl 1 - 6

1шт.

Valid for 580SN (Livery), 580SN WT (Livery), 590SN (Livery) Models Only, W/ Mechanical Control and Standard Transmission

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

7

47955736

CONSTRUCTION DIA

Loader Valve 3 Spool, Incl 1 - 6

1шт.

Valid for 580SN (Livery), 580SN WT (Livery), 590SN (Livery) Models Only, W/ Mechanical Control and Powershift Transmission

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

7

47955743

CONSTRUCTION DIA

Loader Valve 3 Spool, Incl 1 - 6

1шт.

Valid for 580N (Livery) Model Only, W/ Pilot Control and Powershuttle Transmission

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 24
