Запчасти Case 580SN WT (35.357.200) - 7-SPOOL, PRESSURE CONTROL VALVE, W/ PILOT CONTROLS, COMPONENTS (35) - HYDRAULIC SYSTEMS

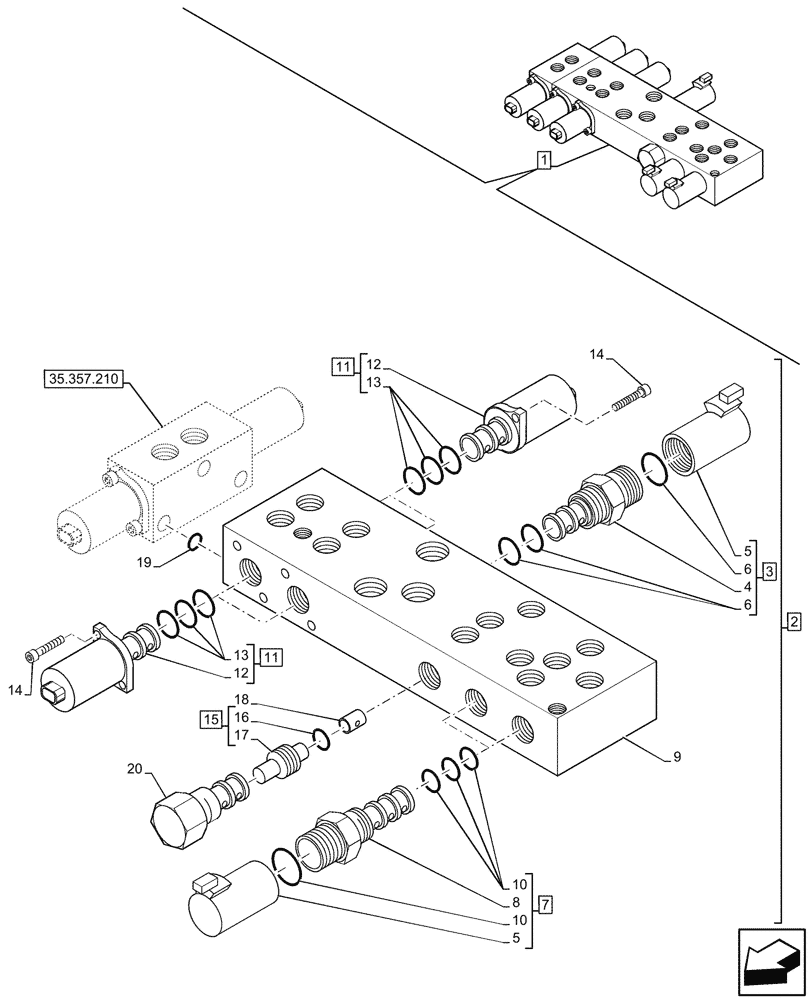

Схема запчастей Case 580SN WT - (35.357.200) - 7-SPOOL, PRESSURE CONTROL VALVE, W/ PILOT CONTROLS, COMPONENTS (35) - HYDRAULIC SYSTEMS
35.357.210
6
12
13
2
11
6
1
10
11
5
17
8
4
20
9
18
15
16
5
14
10
13
7
14
19
12
3

Артикул

Название

Примечание

Количество

1

47765051

PILOT VALVE

ASSY, Proportional Pilot Pressure, Incl 2 - 20

1шт.

See also Pilot Valve Components in Figure 35.357.210

1шт.

2

47773975

MANIFOLD VALVE

ASSY, Incl 3 - 20

1шт.

3

85827994

SOLENOID VALVE

ASSY, 3W-2P, Incl 4, 5 (Qty 1), 6

1шт.

4

NSS

NOT SOLD SEPARAT

Solenoid, 3W-2P, Incl in 3

1шт.

5

85827995

COIL

3шт.

6

85827998

SEAL KIT

Pilot Controls, Pressure Control Valve

1шт.

7

85827996

SOLENOID VALVE,2 Section

ASSY, Incl 5 (Qty 2), 8, 10

2шт.

8

NSS

NOT SOLD SEPARAT

Solenoid Valve, 2 Section, Incl in 7

2шт.

9

NSS

NOT SOLD SEPARAT

Valve, Manifold Block, Incl in 2

1шт.

10

85828002

SEAL KIT

Pilot Controls, Pressure Control Valve

2шт.

11

85827993

SOLENOID VALVE

ASSY, Pressure Reducing, Incl 12, 13

4шт.

12

NSS

NOT SOLD SEPARAT

Solenoid Valve, Incl in 11

4шт.

13

85828000

SEAL KIT

Pilot Controls, Pressure Control Valve

4шт.

14

14302921

HEX SOC SCREW,M4 x 10mm, Cl 8.8, Full Thd

8шт.

15

85827992

CHECK VALVE

ASSY, Incl 16, 17

1шт.

16

NSS

NOT SOLD SEPARAT

Check Valve, Incl in 15

1шт.

17

85828003

O-RING,1mm Thk x 9mm ID

1шт.

18

85828005

ORIFICE

1шт.

19

85827999

SEAL KIT

Pilot Controls, Pressure Control Valve

1шт.

20

47761898

VALVE, PRESSURE CONT

Valve, Pressure Reducing, Pilot Control Manifold

1шт.

Выбрано товаров: 21
