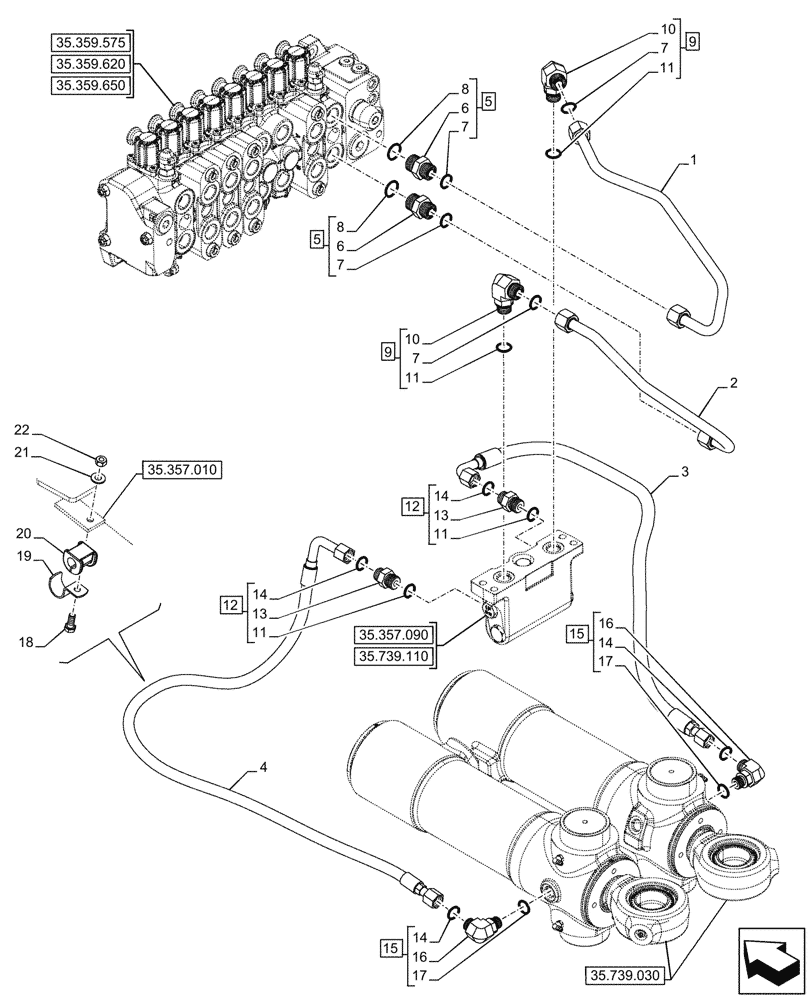

Запчасти Case 580SN WT (35.357.120) - VAR - 423078 - BACKHOE ARM, PILOT CONTROLS, LINE (35) - HYDRAULIC SYSTEMS

1

84332787

HYD TUBE

Swing Damp Bottom Port

1шт.

2

84332788

HYD TUBE

Swing Damp Top Port

1шт.

3

84328810

HOSE ASSY.,12.5mm ID x 899mm L

Swing Cylinder to Dampening Valve RH

1шт.

4

84399174

HOSE ASSY.,10mm ID x 1285mm L

Swing Cylinder to Dampening Valve LH

1шт.

5

83962539

HYD CONNECTOR,1" - 14 ORFS x 1-1/16 - 12 ORB

ASSY, Incl 6, 7 (Qty 2), 8

2шт.

6

NSS

NOT SOLD SEPARAT

Connector, Incl in 5

2шт.

7

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.

8

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

9

87675522

90 ELBOW,90 Degree 1"-14 x 7/8"-14 Adj ORFS

ASSY, Incl 7, 10, 11

2шт.

10

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 9

2шт.

11

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

4шт.

12

87610720

HYD CONNECTOR,7/8" - 14 ORB x 13/16" - 16 ORFS

ASSY, Incl 11 (Qty 2), 13, 14 (Qty 2)

2шт.

13

NSS

NOT SOLD SEPARAT

Connector, Incl in 12

2шт.

14

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

15

9992307

90 ELBOW,90 Degree, 13/16"-16 x 3/4"-16 Adj, ORFS

ASSY, Incl 14 (Qty 2), 16, 17

2шт.

16

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 15

2шт.

17

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

18

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

19

D143411

CLAMP,28.96mm ID, 10.31mm Bolt Hole, J Type

1шт.

20

D74182

GROMMET,3/4" ID x 1.46" L

1шт.

21

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

1шт.

22

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.
