(35.356.060) - BACKHOE CONTROL VALVE, 7-SPOOL, MECHANICAL CONTROL, EXTANDABLE DIPPER, W/O 2 LEVER CONTROLS, W/O DOUBLE AUXILIARY

Запчасти Case 580SN WT (35.356.060) - BACKHOE CONTROL VALVE, 7-SPOOL, MECHANICAL CONTROL, EXTANDABLE DIPPER, W/O 2 LEVER CONTROLS, W/O DOUBLE AUXILIARY (35) - HYDRAULIC SYSTEMS

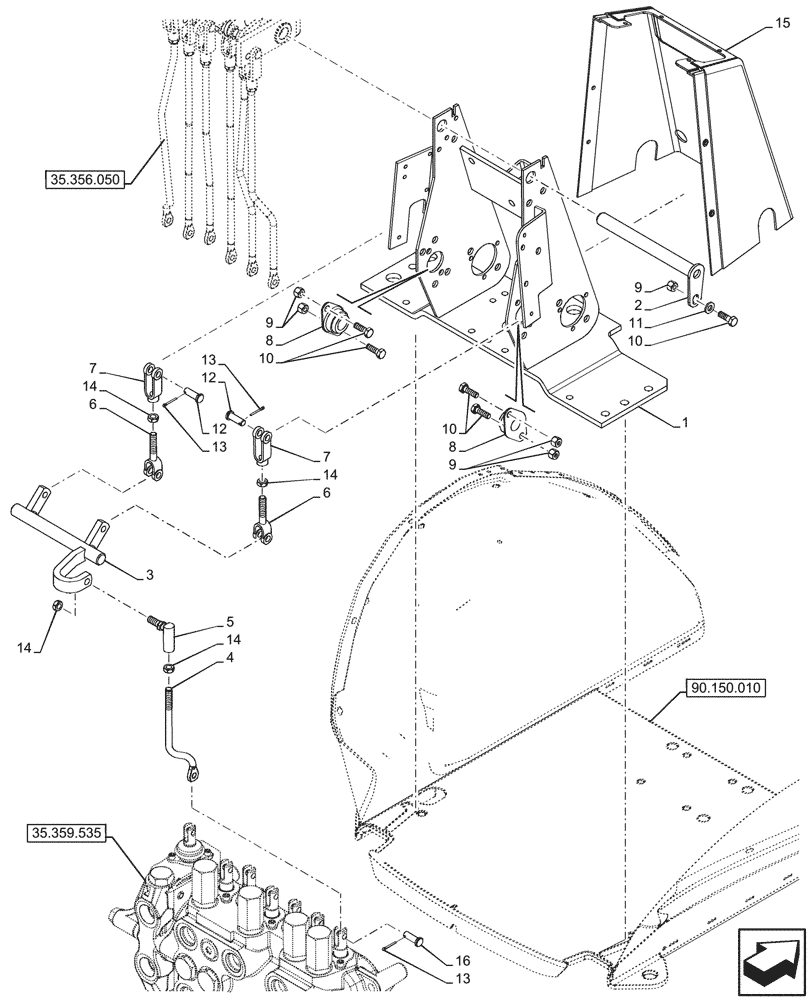

Схема запчастей Case 580SN WT - (35.356.060) - BACKHOE CONTROL VALVE, 7-SPOOL, MECHANICAL CONTROL, EXTANDABLE DIPPER, W/O 2 LEVER CONTROLS, W/O DOUBLE AUXILIARY (35) - HYDRAULIC SYSTEMS
35.359.535
8
9
6
10
14
14
12
16
14
5
9
6
12
9
1
14
15
7
8
2
13
4
11
10
10
3
13
7
13
35.356.050
90.150.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87418516

SUPPORT

Backhoe Control Tower

1шт.

2

87401203

SHAFT,198mm L

Pivot Backhoe Controls

1шт.

3

D148994

SHAFT,182.10mm L

Swing

1шт.

4

87422239

THREADED ROD,9.53mm D x 151mm L

1шт.

5

D149295

BALL JOINT,3/8"

1шт.

6

D150503

END

2шт.

7

D149262

CLEVIS,3/8-24"

2шт.

8

D139039

BEARING ASSY,19mm ID

2шт.

9

832-10408

NUT,M8 x 1.25, Cl 8.8

5шт.

10

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

5шт.

11

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

12

D149288

PIN,8.33mm OD x 30.66mm L

2шт.

13

432-612

COTTER PIN,3/32" x 3/4"

9шт.

14

425-156

JAM NUT,Jam, 3/8"-24, G5

4шт.

15

47945922

COVER

1шт.

16

D149287

PIN,7.9mm OD x 26.72mm L

7шт.
