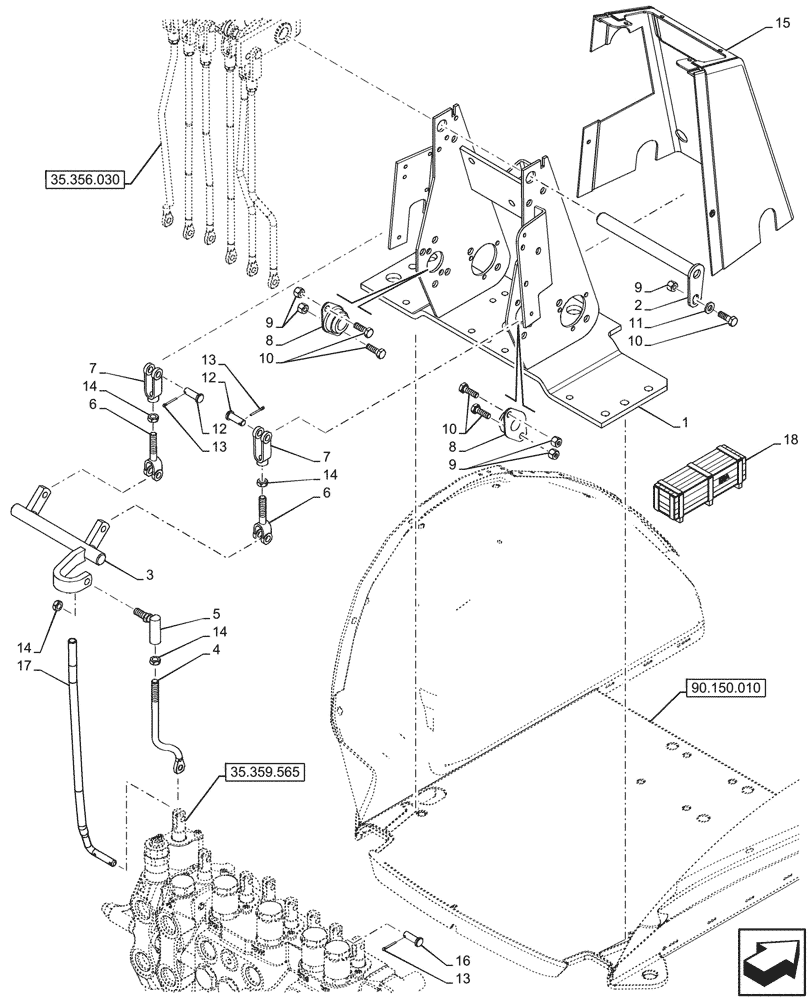

Запчасти Case 580SN WT (35.356.040) - BACKHOE CONTROL VALVE, 8-SPOOL, MECHANICAL CONTROL, EXTANDABLE DIPPER, W/O 2 LEVER CONTROLS, W/O DOUBLE AUXILIARY (35) - HYDRAULIC SYSTEMS

1

87418516

SUPPORT

Backhoe Control Tower

1шт.

2

87401203

SHAFT,198mm L

Pivot Backhoe Controls

1шт.

3

D148994

SHAFT,182.10mm L

Swing

1шт.

4

87422239

THREADED ROD,9.53mm D x 151mm L

1шт.

5

D149295

BALL JOINT,3/8"

1шт.

6

D150503

END

2шт.

7

D149262

CLEVIS,3/8-24"

2шт.

8

D139039

BEARING ASSY,19mm ID

2шт.

9

832-10408

NUT,M8 x 1.25, Cl 8.8

5шт.

10

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

5шт.

11

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

12

D149288

PIN,8.33mm OD x 30.66mm L

2шт.

13

432-612

COTTER PIN,3/32" x 3/4"

9шт.

14

425-156

JAM NUT,Jam, 3/8"-24, G5

4шт.

15

47945922

COVER

1шт.

16

D149287

PIN,7.9mm OD x 26.72mm L

7шт.

17

84398269

ADJUSTMENT ROD,9.525mm D x 315.2mm L

1шт.

18

47674139

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Incl 17

1шт.

Valid for 580N EP (Livery) Model Only, W/ Mechanical Control and Extendable Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

18

47945925

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Incl 17

1шт.

Valid for 580N (Livery), 580SN (Livery), 580SN WT (Livery) Models Only, W/ Mechanical Control and Extendable Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

18

47945930

CONSTRUCTION DIA

Conversion 2 Lever to Foot Swing, Incl 1 - 15

1шт.

Valid for All Models, W/ Extendable Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

18

47946549

CONSTRUCTION DIA

Uni to Combo Auxiliary, Incl 17

1шт.

Valid for All Models, W/ Mechanical Control and Extendable Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

18

47945927

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Incl 17

1шт.

Valid for 590SN (Livery) Model Only, W/ Mechanical Control and Extendable Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
