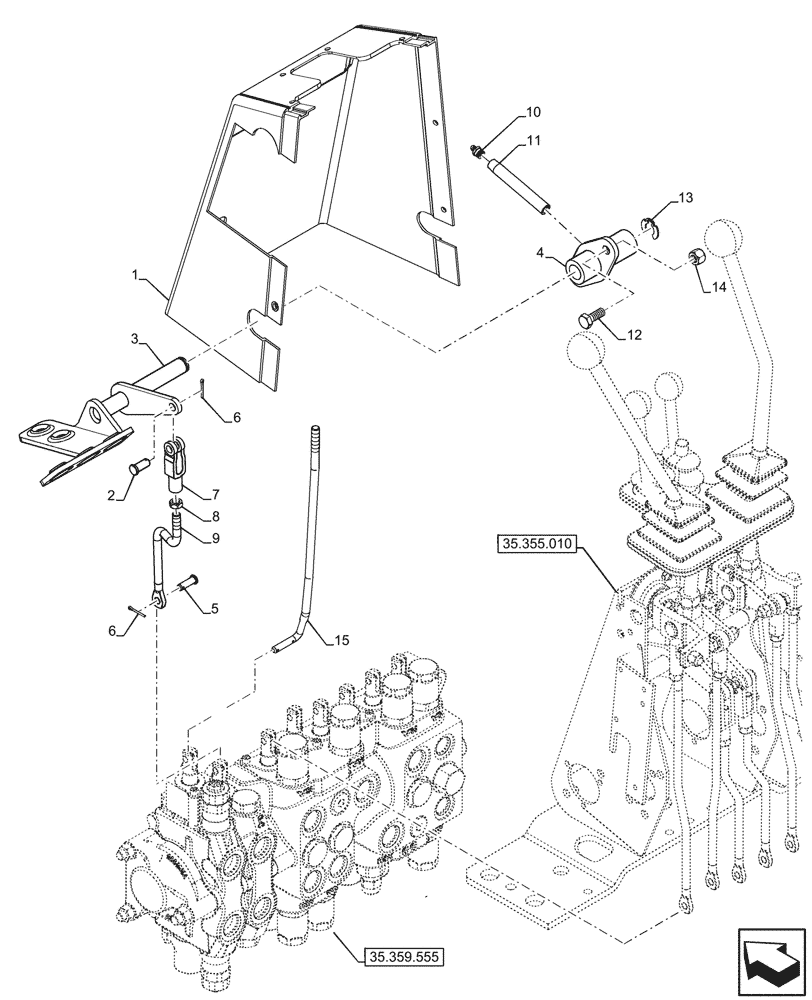

Запчасти Case 580SN WT (35.355.070) - 8-SPOOL, BACKHOE CONTROL VALVE, MECHANICAL CONTROLS, EXTANDABLE DIPPER, HAND SWING, W/ 2 LEVER CONTROLS, W/ DOUBLE AUXILIARY, MOUNTING PARTS (35) - HYDRAULIC SYSTEMS

1

47945899

TRIM PANEL

1шт.

2

427-6088

CLEVIS PIN,3/8" x 3/4"

1шт.

3

179029A1

PEDAL

Foot Swing

1шт.

4

126918A1

SUPPORT

1шт.

5

D149287

PIN,7.9mm OD x 26.72mm L

7шт.

6

432-612

COTTER PIN,3/32" x 3/4"

8шт.

7

D134900

CLEVIS,3/8-24"

1шт.

8

425-156

JAM NUT,Jam, 3/8"-24, G5

1шт.

9

87440058

THREADED ROD,9.53mm D x 148mm L

1шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

11

D150032

TUBE

1шт.

12

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

13

D143416

CIRCLIP,15.09mm ID x 27.81mm OD x 1.57mm Thk

1шт.

14

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

15

84398269

ADJUSTMENT ROD,9.525mm D x 315.2mm L

1шт.
