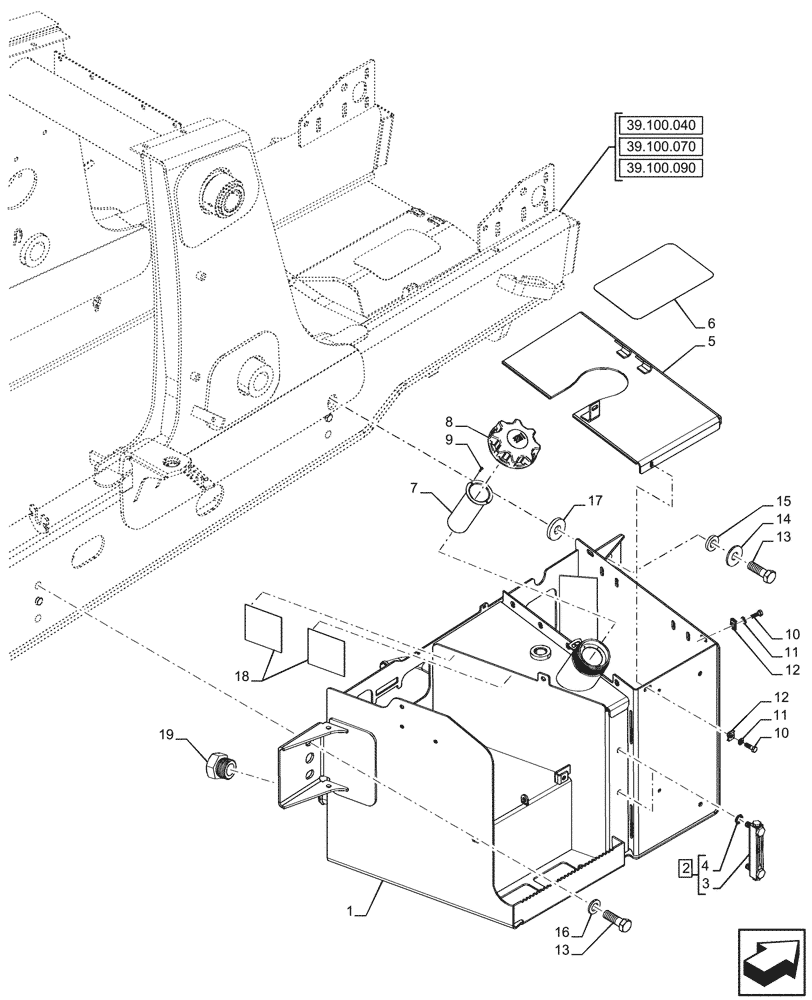

Запчасти Case 580SN WT (35.300.010) - HYDRAULIC OIL RESERVOIR (35) - HYDRAULIC SYSTEMS

1

47959083

TANK

Grey, Years: -20-JAN-17

1шт.

1

48039528

TANK

Grey, Start Year: 21-JAN-17

1шт.

2

226456A1

LEVEL GAUGE

ASSY, Hydraulic Oil Reservoir, Incl 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

Level Gauge, Incl in 2

1шт.

4

238-6114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

4шт.

5

47955687

BRACKET

Grey

1шт.

6

47595465

ANTI-SKID STRIP

SCR Cover

1шт.

7

47713922

FILTER STRAINER

Hydraulic Tank

1шт.

8

84298013

CAP,128.8mm D

Hydraulic Tank

1шт.

9

86625195

SCREW,Pan Head, #6 - 32 x 5/8"

2шт.

10

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

11

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

3шт.

12

833-40408

NUT,M8, U

3шт.

13

9843495

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9

4шт.

14

302358A1

WASHER,21mm ID x 54mm OD x 4mm Th

2шт.

15

185926A1

SPACER,21mm x 40mm x 6.6mm Th

2шт.

16

87655047

SPECIAL WASHER,21.25mm ID x 38.10mm OD x 4.20mm Thk

2шт.

17

87360280

SPACER,22mm ID x 57mm OD x 8.25 Th

1шт.

18

87673270

ADHESIVE STRIP

2шт.

19

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

1шт.
