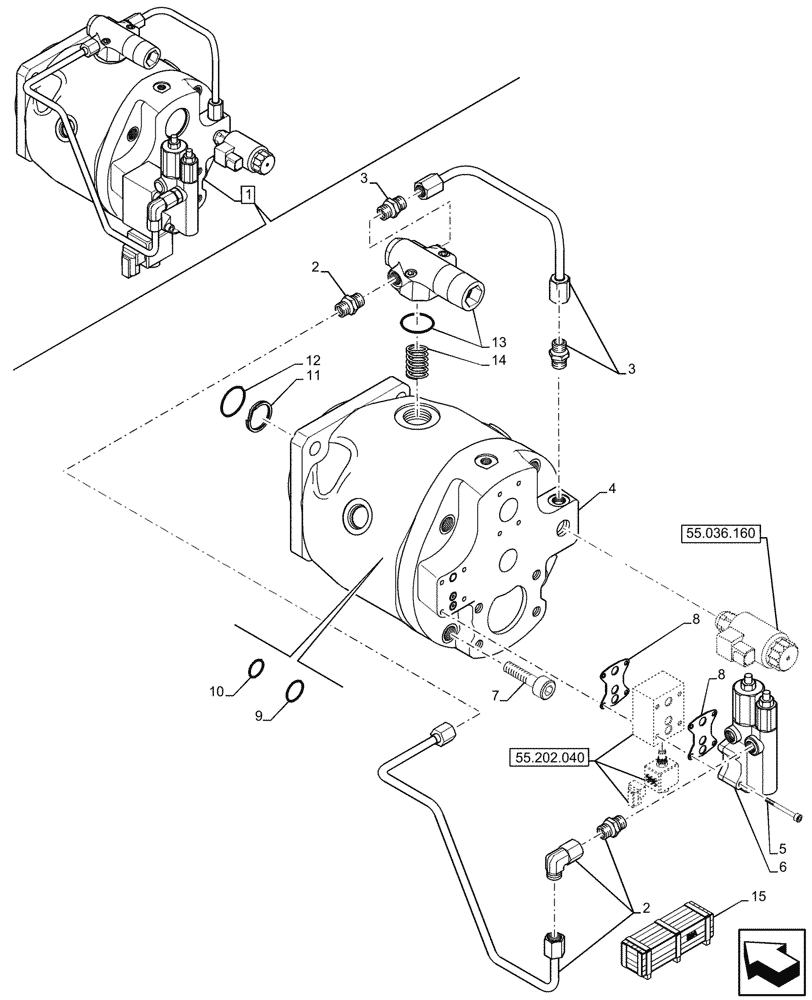

Запчасти Case 580SN WT (35.106.340) - VARIABLE DISPLACEMENT HYDRAULIC PUMP (W/ POWER LIFT, W/ DUAL BATTERIES), COMPONENTS (35) - HYDRAULIC SYSTEMS

1

84545279

HYDRAULIC PUMP,71 CC

ASSY, Incl 2 - 14

1шт.

71cc, Load Sense (LS)

1шт.

See also Hydraulic Pump Components in Figures 55.036.160, 55.202.040

1шт.

84545279R

REMAN-HYD PUMP

Reman ASSY, Incl 2 - 14

1шт.

84545279C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

47369295

REPAIR KIT

Control Tube, Long, Cold Start

1шт.

3

84499592

SERVICE KIT

Control Tube, Short

1шт.

4

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

5

10589621

SCREW,Hex Skt, M6 x 80mm, Cl 8.8

4шт.

6

84311934

CONTROL VALVE

1шт.

7

84312223

HEX SOC SCREW

4шт.

8

84312299

GASKET

2шт.

9

84312210

O-RING

1шт.

10

84312220

O-RING

4шт.

11

84312221

RING

1шт.

12

84312204

SEALING RING

2шт.

13

84311937

CONTROL VALVE

1шт.

14

47822288

SPRING KIT

Torque Control, 71CC

1шт.

15

47825430

CONSTRUCTION DIA

Cold Start Aid, Supplemental, Incl 2, 5, 8

1шт.

Valid for 580SN (Livery), 580SN WT (Livery), 590SN (Livery) Models Only, W/ Mechanical Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
