Запчасти Case 580SN WT (27.106.130) - VAR - 423062 - TRANSMISSION, POWERSHIFT, COMPONENTS, DIFFERENTIAL LOCK, OIL, SUCTION PIPE, 4WD (27) - REAR AXLE SYSTEM

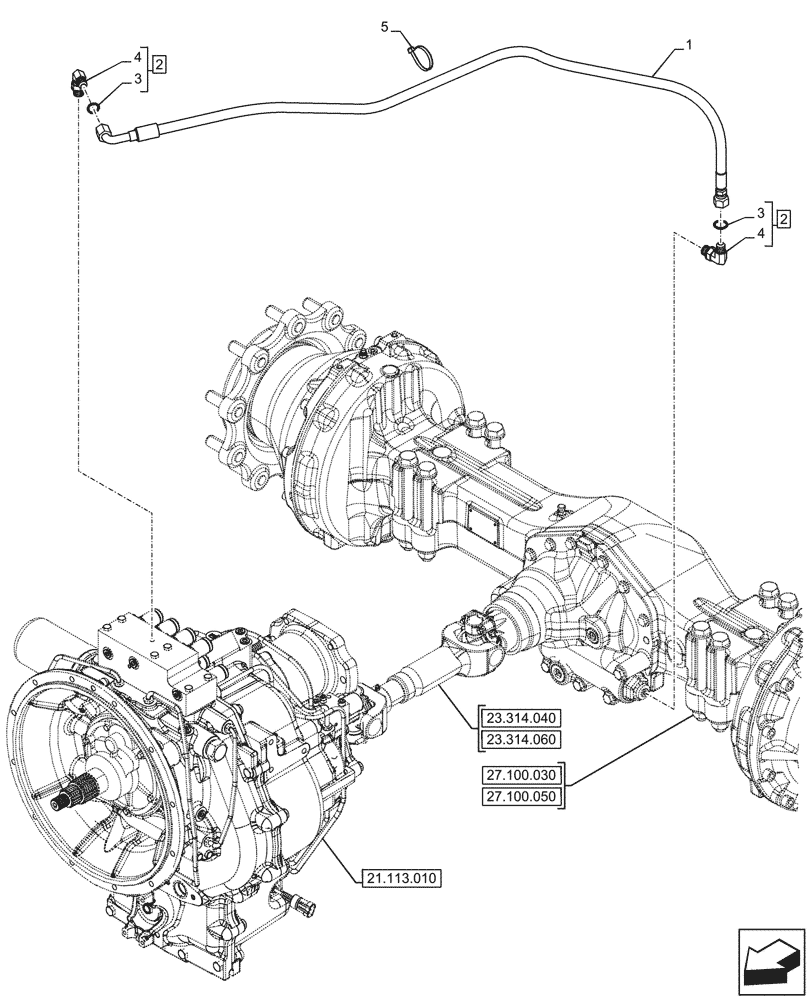

Схема запчастей Case 580SN WT - (27.106.130) - VAR - 423062 - TRANSMISSION, POWERSHIFT, COMPONENTS, DIFFERENTIAL LOCK, OIL, SUCTION PIPE, 4WD (27) - REAR AXLE SYSTEM
21.113.010
4
3
5
4
2
1
2
3
27.100.030
27.100.050
23.314.040
23.314.060

Артикул

Название

Примечание

Количество

1

87431701

HYDRAULIC HOSE,6.4mm ID x 1350mm L

Differential Lock

1шт.

2

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

ASSY, Incl 3, 4

2шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

4

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 2

2шт.

5

L11541

CABLE TIE,203.2mm L, Nylon

1шт.

Выбрано товаров: 5
